Site of the Week 12/6/2013: Boston AMs, 2011

Scott Fybush by Scott Fybush
December 6, 2013
in Free Content, Massachusetts, Tower Site of the Week
3

Text and photos by SCOTT FYBUSH

For the last few months here on NERW, we’ve been showing you a whole bunch of sites that are a long way from our home base in the northeast. While it’s fun to do things like a cross-country drive and a deep dive into the sites of southern Indiana, our heart is still back in “NERW-land,” and especially in the town where the column was born way back in the early 1990s.

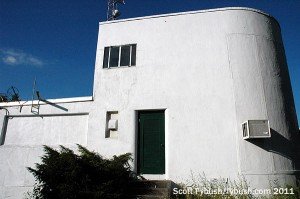

The 590 transmitter building
The 590 transmitter building

590's transmitter room
590’s transmitter room

Amazingly enough, for all of the time your editor spent in Boston radio, I left Massachusetts in 1997 without having been inside most of the transmitter sites in town, and it’s taken a whole bunch of trips since then to rectify the situation.

WEZE's towers
WEZE’s towers

These pictures are from a fun visit in the fall of 2011, in which I filled in several gaps in my collection of Boston transmitter visits. That included the 1150/1470 site in Lexington, as seen in Tower Site Calendar 2013 and on this page a year or so ago. And as long as we were in the genial company of Salem Broadcasting’s Boston engineer, Frank Kelley, we wondered about seeing some of his other sites around town…so off we went to the northern suburbs of Boston to see two more of Salem’s AMs.

Just off Wellington Circle in Medford sits what I believe to be the oldest AM site still in use in Boston. Dedicated on April 6, 1937, this site on Mystic Valley Parkway was built by CBS for what was then WEEI on 590, running 5000 watts by day and 1000 watts at night (later increased to 5000 watts fulltime)  from two self-supporting towers behind a magnificent Art Deco building with a two-story curved glass block window and dramatic backlit call letters.

CBS owned the station until 1982, when it sold to the family that owned Papa Gino’s pizza; under their tenure, the aging self-supporting towers were replaced by the current guyed towers that are widely spaced behind what’s now a row of businesses along Mystic Valley Parkway (including, ironically, a Bertucci’s pizza joint right next door). The glass block was filled in and the callsign removed, leaving a more anonymous-looking building tucked in behind a fence. And then, of course, came the great shuffle of 1994 that sent the WEEI calls and sports format up the dial to 850, the former WHDH. The 590 signal spent a few years doing business talk as WBNW before ending up with Salem, which gave it the WEZE calls and religious format that had been up the dial on 1260. (More on that in a moment!)

The 590 phasor
The 590 phasor

Upstairs at the old WEEI
Upstairs at the old WEEI
590's emergency studio
590’s emergency studio

Today, a visit to the old WEEI site still reveals traces of the old Art Deco flair. The original two-story transmitter room behind the glass block has been walled in, with a dropped ceiling inserted to reduce it to a single story.

Upstairs, there’s former studio equipment lined up in what used to be engineering office space, and a very makeshift emergency studio set up in another former office corner overlooking the upper section of what used to be the two-story transmitter room, which must have been quite the sight to see when it was new. (Now it just carries ventilation from the transmitter room up to the roof.)

It’s worth noting that WEEI paved the way for many more AM stations to locate near Wellington Circle. Within not much more than a decade after WEEI signed on here, new sites went up nearby for WHIL on 1540 (later 1430, and today known as WKOX) and for WBMS on 1090 (later WILD); they now share the old WHIL site, and we saw them on a visit here in 2010.

Way upstairs at the old WEEI
Way upstairs at the old WEEI

WROL's building
WROL’s building

From Wellington Circle, Route 16 heads eastbound to the sea, but before we get all the way there, we turn northward on Route 107 and make our way up to Rumney Marsh, where the eastern edge of Saugus meets Revere to the south and Lynn to the north.

WROL's Nautel
WROL’s Nautel
WROL's tower
WROL’s tower

It’s here, on a little spit of land extending eastward from 107 into the marsh, that we find another venerable transmitter site. This was home to WHDH on 830 and later 850 from 1932 until the present 850 transmitter site went up out in Needham after World War II.

After WHDH moved out to the west (allowing it to use a nighttime directional pattern that protected co-channel KOA in Denver), the Rumney Marsh site ended up on the receiving end of a reverse swap with the western suburbs. In 1950, the new incarnation of WORL (a venerable Wellesley-based station that had lost its license in 1949) signed on from the former WHDH site, replacing WHDH’s two towers with a single 279-foot self-supporter.

Over the years, WORL became WRYT and then WROL (the WORL calls having departed for the Orlando, Florida market), spending many decades in the hands of Carter Broadcasting before being sold to Salem in 2001.

Salem’s purchase meant the end of studio operation out here in the Saugus marsh, as well as the end of a plan to add two more towers out here to give WROL a more potent night signal than its present 90 watts.

WROL's backup transmitters
WROL’s backup transmitters

A former WROL studio
A former WROL studio

Today, the former WROL studios sit quiet and empty out here, with big picture windows looking out at the scenery of the marsh, where a storm is rolling in during our visit. The Carter-era transmitter room, where a Harris MW5 sits next to a Nautel AMPFET, was also quiet; there’s a newer Nautel sitting in what used to be a storage room behind the MW5, and it’s that AMPFET that now powers WROL’s 5000-watt day signal.

The 1260 building
The 1260 building

1260's transmitter room
1260’s transmitter room

We promised you we’d return to the 1260 piece of the Boston AM story, and this 2011 trip included that chapter as well, as our rainy day took us south of the city to the end of Riverside Avenue in Milton.

A former 1260 studio
A former 1260 studio

Behind the transmitter building
Behind the transmitter building
The WMKI towers
The WMKI towers

This site dates to 1943, when the Yankee Network relocated its Boston flagship station WNAC (1260) from a previous site not too far away in the Squantum section of Quincy and sent sister station WAAB (1440) off to Worcester. By going directional with three towers, WNAC was able to go to 5000 watts fulltime, though its spot high on the dial still made it a lesser signal than its competitors, especially 50,000-watt WBZ.

For a structure that was built during wartime (WNAC had special permission to move forward with construction, since it already had the materials on hand), this is a fairly substantial brick and concrete building that must have been an impressive sight when it was new, before the windows got filled in.

Within just a decade after opening day, this site was on the way to new chapters of a very complicated history: in July 1953, the FCC signed off on WNAC’s purchase of 50,000-watt WLAW (680) and its sale of the 1260 facility to Pennsylvania broadcaster Vic Diehm. Within the space of just a few hours, WLAW signed off, Diehm moved into the former WLAW studios in the Hotel Bradford (which had in turn been the home of WBZ before its studios moved to Allston in 1948), and the 1260 transmitter site in Milton became the home of new station WVDA.

Diehm’s WVDA lasted only four years before becoming WEZE, and WEZE in turn went through a series of music incarnations that included a long run with beautiful music and then top-40 from a streetfront studio in Copley Square.

A 1977 sale to New England Continental Media, a predecessor of today’s Salem, turned WEZE religious and moved its studios out here to the transmitter building. Salem owned the station for almost exactly 20 years before selling it in 1997 to Hibernia Broadcasting, which flipped it to Radio Disney, changed calls to WMKI and eventually sold the station to Disney itself.

Looking out into the swamp
Looking out into the swamp

A 1260 tower base
A 1260 tower base

And that’s where we came in: our 2011 visit found a building that had undergone plenty of modification over the years. WMKI’s pair of Nautel transmitters (Disney is a big Nautel user) and phasor now occupy the front room of the building, right inside a little vestibule that must have been the reception area when WEZE had its studios out here, before they moved up the road to the Marina Bay office complex in Quincy where Salem now operates. (Radio Disney maintains office space and what passes for a local WMKI studio up in Allston.)

Hallways leading in two directions from the transmitter room go to former studio spaces, now used for storage. There’s a room in back that I think served as the transmitter room when WEZE had its office here, and it in turn leads out to the catwalk that runs out into the swamp where the three self-supporters sit.

Thanks to Salem’s Frank Kelley and WMKI’s Lee “Doc” Brown for the tours!

2014calendarDid you catch our Tower Site of the Week Bonus on Wednesday? The image we featured earlier this week of KBRT on Catalina Island is one of the featured images in Tower Site Calendar 2014, now shipping from the Fybush.com Store.

This year’s gorgeous electronic pinups includes not only the iconic towers of Catalina Island but also a combiner system in St. Louis, the twin towers of KNRS in Salt Lake City, a historic rooftop site in Jamestown, New York and many more!

If you want a tower calendar on your wall NOW, you can pick up the current edition for just $5 with your 2014 order!

Click here to order your new calendar!

Then check out our store page for our other great merchandise, including the last-ever FM Atlas, the new NRC AM Log and a model of the KSAN tower.

Next Friday: Boston FMs, 2011
