Raleigh-Durham-Chapel Hill, N.C.
When we spent a week or so checking out the towers of the
Carolinas this past March, our trip ended with a day and a half
in the region's second-largest market. Like Charlotte, 100 miles
or so to the southwest, the "Triangle" of Raleigh,
Durham and Chapel Hill continues to be one of the fastest-growing
markets in America. (How fast? 30 years ago, this was the 65th-largest
TV market in America. Today, it's #29 - a little smaller for
radio, since the TV market includes the Fayetteville area to
the south, which is its own separate radio market.)
But for all its size and economic vitality, it's hard to get
too excited about the tower sites to be seen in the Triangle.
It's not that the stations aren't interesting - but once you've
seen the site at the right, you've seen most of the excitement
the market offers.

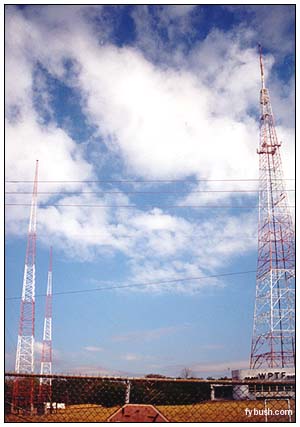

That site is WPTF, 680 on your dial, the 50,000-watt voice
of Raleigh - and for more than half a century, it's used this
site on E. Chatham Street in Cary, just south of NC 54, the highway
that links Raleigh and Durham. When this site was built, of course,
it was way out in the country; today, it's right
in the heart of suburbs that now stretch far south to Fuquay-Varina,
Apex and Holly Springs.
This is still a good signal, though, nondirectional by day,
and directional at night with a huge lobe over Raleigh itself
and (fortuitously) the southern suburbs, with an adequate back
lobe that covers Durham. And what's that atop the tall #1 tower
behind that Art Deco transmitter building? It's not, as we once
thought, the old mast for the WPTF-TV (Channel 28) antenna, from
back in the days when there was a WPTF-TV - but it was definitely
used for WPTF-FM 94.7, now WQDR - and we've heard that it was
originally meant for a low-band VHF allocation that WPTF never
won. Channel 28, meanwhile, wasn't WPTF-TV until 1978 (it was
originally WNAO of the Raleigh News & Observer, then
went dark, then returned as WRDU-TV and later WPTF-TV at a tower
down in Apex that was later dismantled and moved to Wake Forest,
where it's now used by classical WCPE 89.7.) Today, channel 28
is UPN affiliate WRDC from a much better site - and class A drop-in
WWMY (102.9 Raleigh) occupies that spot on the 680 tower.
(You'll see this site again in Tower Site Calendar 2004...)
A short drive west
of Cary on NC 54 gets us to the five-tower array of WRBZ (850);
this is the old WKIX, a heritage Raleigh signal that used to
operate from another site closer to town. Its current, relatively
nondescript in-line array is already heavily encroached by a
shopping center and housing developments.
Let's head back into Raleigh, then, circling the north side
of the city on I-440 to arrive at the Highwoods office center,
home to a variety of unexciting concrete cubes that house NBC
O&O WNCN (Channel 17, licensed to Goldsboro, far to the east);
Clear Channel's local cluster; Curtis Media's radio cluster that
includes WPTF and WWMY - and the Sinclair duopoly of WB affiliate
WLFL (Channel 22) and UPN'er WRDC (Channel 28).

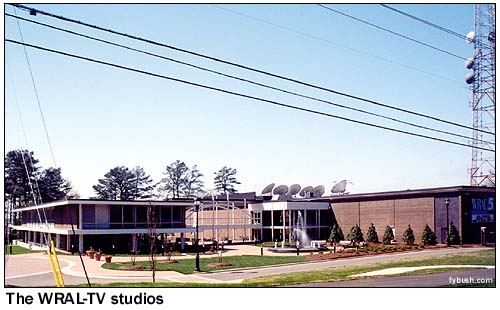

exciting studio can be found on Western Boulevard, on the west
side of Raleigh: WRAL-TV (Channel 5) is one of the most successful
locally-owned stations in America, the pride and joy of Jim Goodmon's
Capitol Broadcasting group. That's one big studio facility, and
well it should be: WRAL was one of the first stations in America
to broadcast a digital signal, way back in 1996, and it's still
the only one we know of that does local news in high definition.
Capitol also owns WRAL-FM (101.5), which has separate studios
at Capitol's corporate headquarters on Hillsborough Street, and
Fox affiliate WRAZ (Channel 50), which does its news from WRAL
but has its own offices overlooking the downtown Durham stadium
of the Durham Bulls, also a Capitol property.

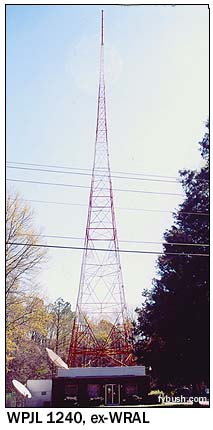

And yes, there was a WRAL(AM) once upon a time, too. It was
on 1240, which now does religion as WPJL. But look at that tower,
at 515 Bart Street on the east side of town - that's a lot of
stick for a 1240, isn't it? Sure enough, those are batwings at
the top of the stick - an early incarnation of WRAL-TV, we're
Today, WRAL-TV and most of the rest of the market's signals
can be found very conspicuously alongside US 70 between Garner
and Clayton, a few miles southwest of the I-40/440 loop. These three towers
each top off at just under 2000 feet (one of them misses that
mark by just inches) - and what a story they have to tell! At
the right in the view above is the oldest of the three, the 1978
tower that's long been home to ABC affiliate (and now O&O)

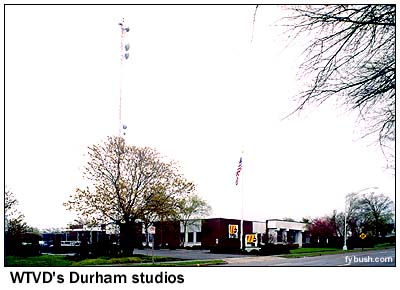

WTVD, channel 11, licensed to Durham. (That's the WTVD studio
building in Durham in the photo at right; it was a gray, rainy
morning when we finally got to Durham on our last day in the
region, so this isn't a very good picture!)
WTVD's 1994' tower outlasted two contemporaries; uneven thawing
after a December 1989 ice storm brought down the equally tall
towers of WRAL-TV 5 and WPTF-TV 28, the latter just three years
old. They were replaced in 1991 by the tower at center, a 1999'
stick that's home to WRAL-TV, WRAZ 50, WRDC 28 (the successor
to WPTF-TV), WQDR 94.7 (the old WPTF-FM) and WRAL-FM 101.5.
At left in the photo above is the newest of the three towers,
the 1988' candelabra that Capitol put up in 2000 for DTV. WRAL-DT
53 is here, as are WRAZ-DT 49, Sinclair's WLFL-DT 57 (WLFL's
analog transmitter is south of town in Apex), and NBC's WNCN
17 and WNCN-DT 55.
The rest of the market's
TV is either far away (WRAY channel 30 and WRPX Channel 47 far
to the east in Wilson and Rocky Mount) or over on the Chapel
Hill side. Public TV comes from the University of North Carolina's
WUNC-TV (Channel 4), the flagship of the statewide "UNC-TV"
service - and its tower sits on Terrells Mountain,
southwest of Chapel Hill, where it was presumably placed to provide
some service to the Triad as well.
Today, it shares the ridge with WUNC-FM (91.5), Durham-licensed
WDCG (105.1) and Burlington move-in WRSN (93.9); we don't have
a good picture because it was pouring rain and foggy when we
We also don't have a picture of Durham's lone interesting
directional array. WDNC (620) is best seen from I-85, but it's
hard to get a picture while driving! (We were short on time and
didn't get to the towers of some of the lesser AM signals in
So we'll leave you with Chapel Hill's AM station, WCHL (1360),
whose two towers are notable mainly because one of them has "W
C H L" down its side - and we'll head back northeast next
week as we check out the tower archaeology of Bloomsburg, Pennsylvania!
