Text and photos by SCOTT FYBUSH

State #48!
State #48!

For quite a few years, the official states-visited travel counter here in Fybush-land sat stubbornly at "45," and without any particular rhyme or reason to what had been left out over the years.

In 2011, I managed to knock two more notches off that list: Big Trip 2011 checked off New Mexico, and a surprise last-minute drive across the country later that same year included a short detour into Arkansas, getting the count up to 47 and leaving just one state unvisited in the Lower 48.

"48 by 40" was the motto as your editor's 40th birthday approached in 2012, but family illness intervened and kept intervening, and so that last remaining hole stayed unfilled into the summer of 2013, when the rental NERW-mobile finally zipped its way northward up I-29 late on a blue-sky Wednesday afternoon.

And with that milestone now checked off (and "50 by 50" still well within reach - watch out, Alaska and Hawaii!), it's up the road we go for dinner on the south side of Fargo, check-in to a fairly mediocre motel (this is not the cheapest small city in America), and on to one of the more exciting Thursdays of our long and questionably sane tower-hunting existence.

KKLQ 100.7
KKLQ 100.7

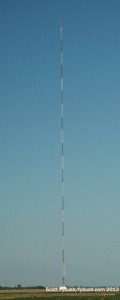

KVLY, distantly
KVLY, distantly

KVLY, closer
KVLY, closer

For, you see, of all the tall towers in North America, only one can be the tallest. And if you're "that guy who visits towers," you just may have spent many years being asked "what's the tallest?" followed by the unhappy admission that "no, I've never been there to see it."

This is where we fix that.

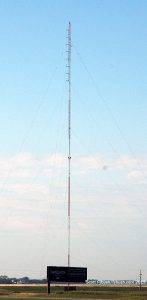

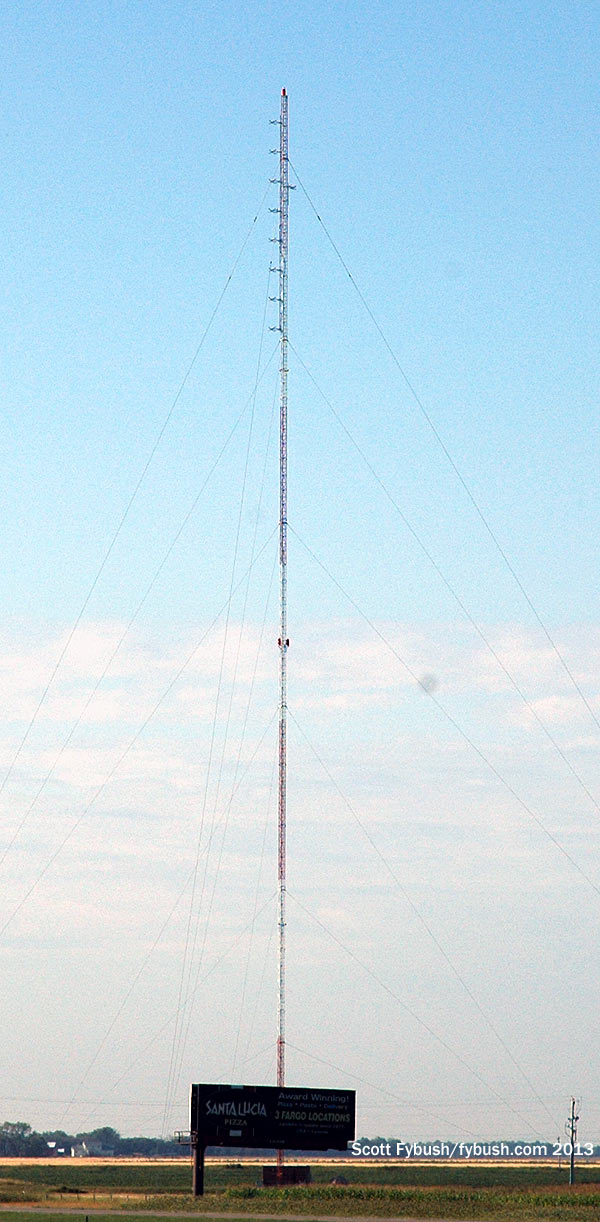

(After first briefly pulling off the side of I-29 to get a shot of K-Love outlet KKLQ 100.7, licensed to Harwood and transmitting from this 330-foot tower some 20 miles north of Fargo, anyway.)

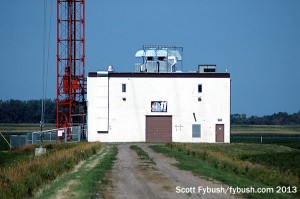

Transmitter building
Transmitter building

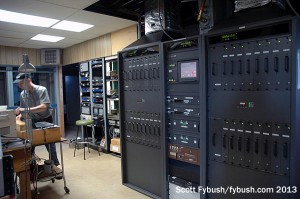

KVLY's digital transmitter
KVLY's digital transmitter

OK: history time. When this 2,063-foot tower rose from the flat, flat farmland of Blanchard, 40 miles or so north-northwest of Fargo, in 1963, it was the culmination of a tall steel arms race that had been underway around the country for more than a decade. The title of "tallest tower in America" passed from contender to contender fairly rapidly before the FAA imposed a cap on tower height - a cap that left this one standing as the highest that could or would exist.

Why so tall? Because Fargo's third TV station needed a little something to set itself apart, and that thing was to try to serve both Fargo and Grand Forks, 80 miles north, from a single transmitter site. And so ABC affiliates KEND (Channel 11, originally KXGO-TV) in Fargo and KNOX-TV (Channel 10) in Grand Forks joined forces to become a single station licensed to Fargo on channel 11, renaming it KTHI - "Hi" because of the height of this mammoth tower.  (The channel 10 license in Grand Forks, which was never very powerful to begin with, was surrendered after the new KTHI signed on from here February 8, 1964.)

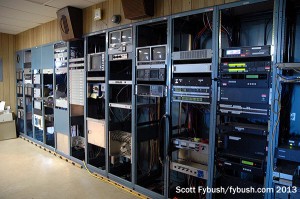

KVLY racks
KVLY racks

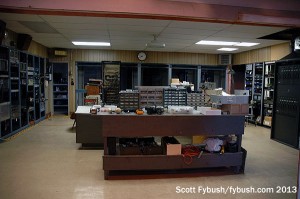

The KVLY transmitter room
The KVLY transmitter room

KTHI swapped affiliation to NBC in 1983 and changed calls to KVLY (for the Red River "VaLleY") in 1995. Along the way, its tall-tower primacy was challenged overseas: an even taller tower went up in Warsaw, Poland in 1974 but collapsed in 1991, and it wasn't until the construction in the 21st century of the Burj Khalifa skyscraper in Dubai that this tower became merely the tallest in the western hemisphere. (At this writing, it's the fourth-tallest in the world, behind newer tall structures in Tokyo and Shanghai.)

The tower has its own official fact sheet, and here are some highlights:

Basic foundation work was done by the Swingen Construction Company of Grand Forks, N.D. The tower base was poured over 87 wood pilings that were driven deep into the ground. The hexagon shaped base is 8.5 feet deep at its center and required 145 yards of concrete to make it sturdy enough to hold the weight of the 864.500 pound structure.

Nine, 16-foot-deep, T-shaped excavations surround the tower base and hold steel guy wire anchors measuring 20 to 30 feet in length and weighing nearly 4,000 pounds. Each of the nine anchors are held in place by 50 yards of concrete - enough to pave 15,900 feet of city sidewalk. More than 40,000 feet of guy wire is used between the anchors and the tower. The tower and guy anchors take up 160 acres of land. The total length of the guy wires is 40,125 feet or 7.6 miles.

The tower itself was fabricated by the Kline Iron & Steel Company, Columbia, S.C. and is made of more than 36.659 individual pieces of steel. The tower was assembled in 33 working days by an 11-man crew with no casualties.

There are 14 levels of lights on the tower, seven levels have two flashing 600-watt beacons spaced 300 feet apart. Six other levels, spaced between beacon levels, consist of three 130-watt obstruction lights, one on each leg of the tower.

The steel tower is taller than the combined heights of the Great Pyramid Khufu at Giza, the Eiffel Tower and the Washington Monument.

If a 30-second commercial started at the same moment a baseball was dropped from the top of the tower, it would have ended nearly four seconds before the ball hit the ground.

In a 70 mph wind, the beacon light on top of the KVLY tower will move approximately 10 feet.

If an iron worker on the antenna dropped his wrench, it would be traveling at a speed of 250 mph when it hit the ground.

If a hunter at the base of the KVLY tower shot at the lead goose flying near the top of the tower with a .45 caliber pistol, he would have to lead the goose by more than the length of a football field, approximately 335 feet.

The tower serves an area larger than the combined areas of Rhode Island, District of Columbia, Delaware, Hawaii, Massachusetts, New Jersey and Connecticut with 1,000 square miles to spare.

Looking out at the monster
Looking out at the monster

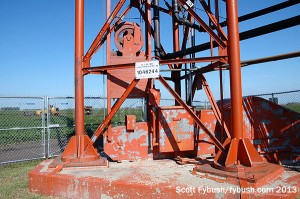

Base of the beast
Base of the beast

It's hard - impossible, almost - to convey just how impressive this beast is when seen in person. Approaching from the east, off I-29 at ND 200, 35 miles north of Fargo, you can see the tower for nearly all of the ten-mile drive westward to the dirt road ("153rd Ave SE") off which it sits.

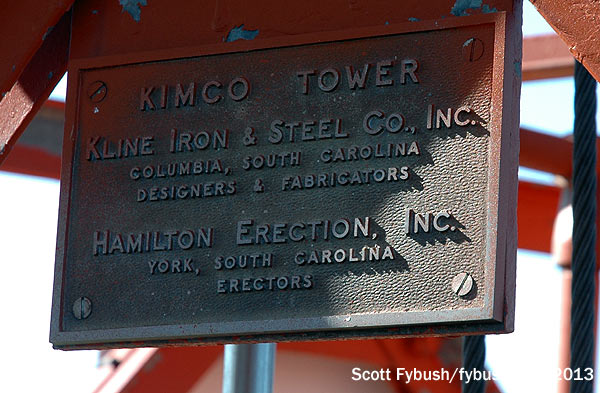

The KTHI/KVLY tower nameplate
The KTHI/KVLY tower nameplate
KVLY's antennas
KVLY's antennas

The nice folks at KVLY try to discourage casual visitors these days - too many would-be BASE jumpers and others who don't have the best of intentions - but if you can arrange a formal tour, as we did, you'll find a fairly simple setup out here these days. The two-story block building at the tower base has storage, power handling and HVAC on the ground floor, with a staircase leading up to the big square transmitter room upstairs.

When my tower-hunting colleague Garrett Wollman was out here in 2009, the original 1963-era GE analog transmitter was still in place, but four years later there was an empty hole where the GE used to be and empty holes, as well, where a lot of the analog gear had been in the racks that lined the other walls of the room. Only the little solid-state Larcan UHF transmitter on RF 44 remained active near the back wall, putting out just under 10 kW of RF to generate a 356 kW ERP from a directional antenna side-mounted up the tower, 1889 feet above average terrain.

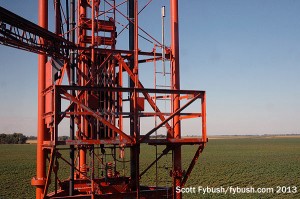

No, we did not get to ride up this mighty beast in the elevator. Yes, of course we asked...

No, we had no idea until we sat down to write this piece that our visit came precisely during the 50th anniversary of this mighty tower's construction. We were there August 8, 2013, and the 33-day tower erection was completed August 13, 1963.

And no, these pictures don't even come close to doing justice to this mighty tower - but if you click on the thumbnails here (and on every other Tower Site of the Week page), you can at least make them bigger.

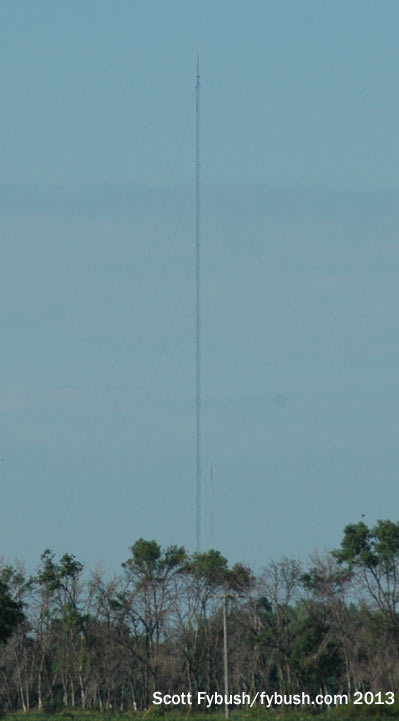

KXJB, from KVLY
KXJB, from KVLY

KXJB
KXJB

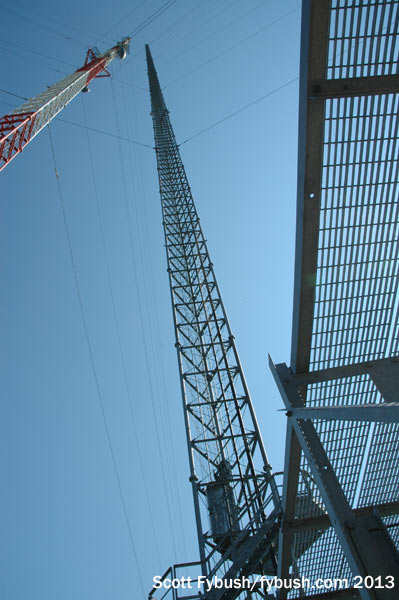

KXJB, looking up
KXJB, looking up

Look six miles south from the KVLY-TV site and you can see another, slimmer tall tower off in the distant haze. At 2,060 feet, the tower of KXJB (Channel 4) is just three feet shorter than KVLY, but the Buzz Aldrin of the North Dakota tall towers just never quite achieved the glory of its slightly taller neighbor. Having signed on in 1954 as the second TV station in Fargo, KXJB was the CBS affiliate all along, licensed to Valley City, just west of Fargo. Its original tower was just over 1000 feet and was located southwest of here, 15 miles northeast of Valley City, with at best a fringe signal up to Grand Forks. In 1966, KXJB joined the tall-tower club up here, erecting its original 2060-footer to provide clear pictures to both cities.

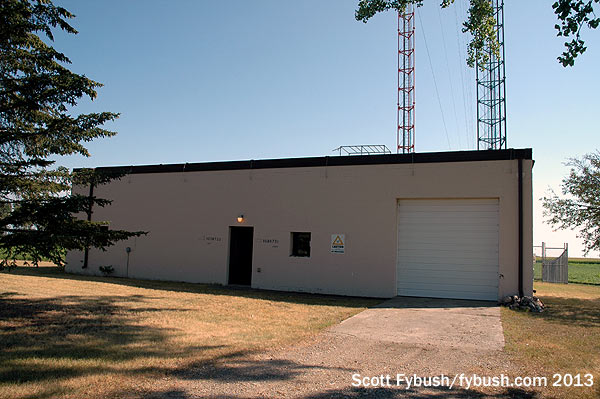

KXJB's building
KXJB's building

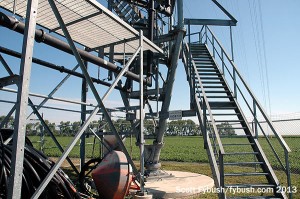

At the base of KXJB
At the base of KXJB

Now the unfortunate part (at least the first unfortunate part): in 1968, a Marine helicopter clipped a guy wire of that new KXJB tower, bringing it down and killing all four people in the helicopter.

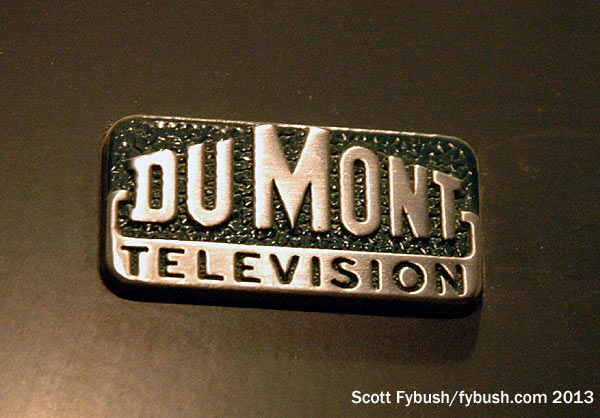

A relic at KXJB
A relic at KXJB

KXJB returned to the Valley City site while building a replacement tower up here near Galesburg in just under five months. That tower, in turn, stood until 1997, when an ice storm sent most of it toppling over.

Wikipedia's entry on the "KXJB-TV Mast" claims that a 735-foot "replacement tower" went up at the site in the spring of 1997, but I'm pretty sure that's actually the stub of the 1968 tower. In any event, it's still here, next to the slim but well-reinforced replacement tower that went back up to the 2060-foot height in 1998.

Which brings us to the second unfortunate part: KXJB-TV ceased to exist, as such, just a few days before this piece was published. Blame the duopoly rules: a series of sales eventually made KXJB a sister station under a shared-service agreement to Hoak's KVLY, operating from the KVLY studios on the south side of Fargo with one newsroom producing "Valley News Live" newscasts that aired on both the CBS and NBC affiliates.

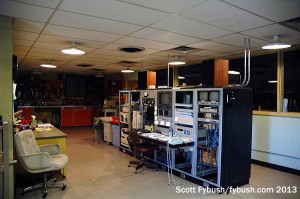

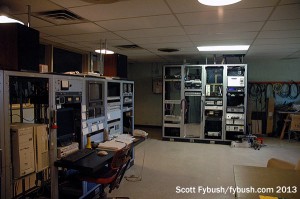

KXJB's transmitter room
KXJB's transmitter room

KXJB's transmitter room
KXJB's transmitter room

When Hoak sold to Gray, the FCC's tightening of duopoly rules meant that it made legal sense to put both the CBS and NBC program streams on the KVLY license. Today, 11.1 is NBC, 11.2 is CBS and 11.3 is MeTV, all broadcasting over RF 44 from the KVLY tower up near Blanchard - and as of December 1, 2014, KXJB's channel 4 signal is off the air awaiting a new buyer.

KXJB's Larcan
KXJB's Larcan

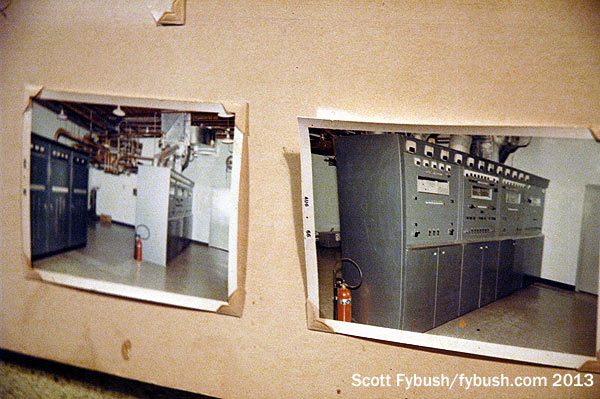

1966 transmitter snaps
1966 transmitter snaps

When and if that buyer emerges, they'll get the license for RF 38/virtual 4, but no studio or programming, or even channel 4 on cable and satellite, which is still "KXJB" over KVLY's 11.2. And they'll get at least the use, if not the ownership, of this very tall tower that still stands near Galesburg, North Dakota.

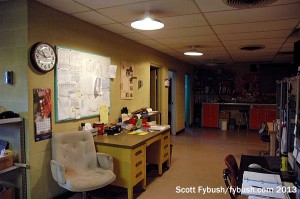

KXJB offices
KXJB offices

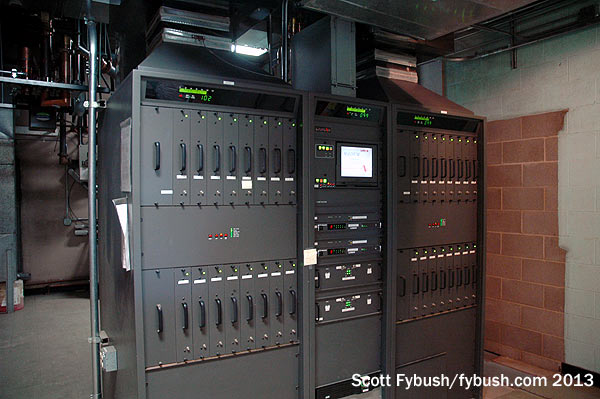

KXJB's transmitter
The back of KXJB's transmitter

A quick peek inside, while it was still on the air: this is a low-slung one-story building, with a big control room area that opens to an office and bedroom in front and big glass windows looking into the transmitter room in back. Like KVLY, the analog rig here is history (though there are a few racks with tempting "DuMont" labels on them, probably moved from the old Valley City site) and there's just a lonely Larcan chugging away here on UHF. Or at least there was. *sniff*

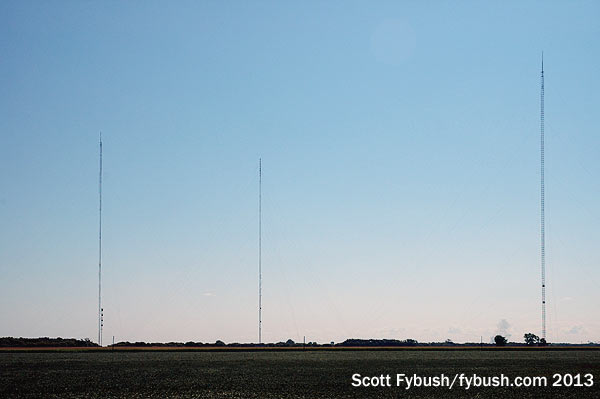

The Amenia towers
The Amenia towers - KFME, the FMs and WDAY

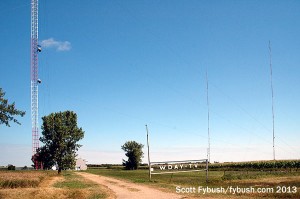

WDAY-TV's driveway
WDAY-TV's driveway and cool sign

The oldest TV station in Fargo went a different route when it came time to try to serve both Fargo and Grand Forks. WDAY-TV (Channel 6) signed on in 1953 as the sister to the state's oldest radio station, WDAY (970). Originally an NBC affiliate, channel 6's first tower was just south of Fargo on what was then US 81, the main north-south highway in the area.

That original 1953 self-supporting tower later became the studio/transmitter site of the city's educational station, KFME channel 13, upon its 1964 debut, and it still stands today on S. University Avenue just south of 40th Avenue. But as the tall towers sprouted to the northwest of Fargo, WDAY-TV joined the crowd - sort of. Instead of going way north and way tall (and in part because it was limited by co-channel CBWT 6 in Winnipeg, north of the border), WDAY built a 1200-foot tower in Amenia, 15 miles northwest of Fargo, giving it a somewhat stronger signal than the more distant channels 4 and 11 when Fargo viewers pointed their antennas up that way. For viewers up in Grand Forks, WDAY put satellite station WDAZ (Channel 8) on the air in 1967, with a 1400-foot tower halfway between Grand Forks and its city of license, Devils Lake. And later on, WDAZ's stronger signal toward the Canadian border meant it stayed on cable in the big Winnipeg market after the Canadian cable companies dropped KXJB and KVLY due to signal issues. (Garrett's 2009 trip made it north to WDAZ's tower, even if we didn't get there this time around.)

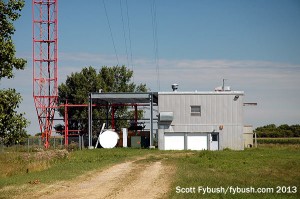

WDAY-TV's building
WDAY-TV's building

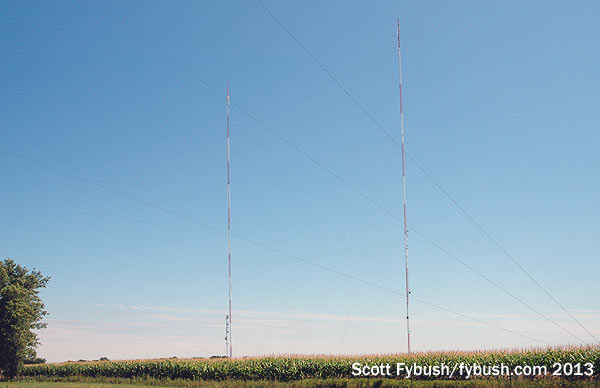

The eastern Amenia towers
The eastern Amenia towers

Two more tall towers joined the club here in the 1980s and 1990s, just east and a bit north of WDAY-TV.  Public station KFME (Channel 13) moved from the original WDAY-TV site to a 1200-foot tower here, the northernmost in the group, in 1981, and its tower later became home to public radio KDSU (91.9) and to religious KFBN (88.7). KFME's old analog channel 6 antenna still sits atop the tower, with the RF 23 digital antenna just below, then KDSU below that and KFBN on the opposite face of the tower below that.

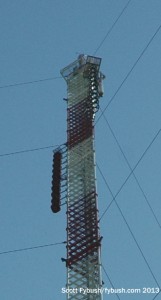

KFME/KDSU
KFME/KDSU

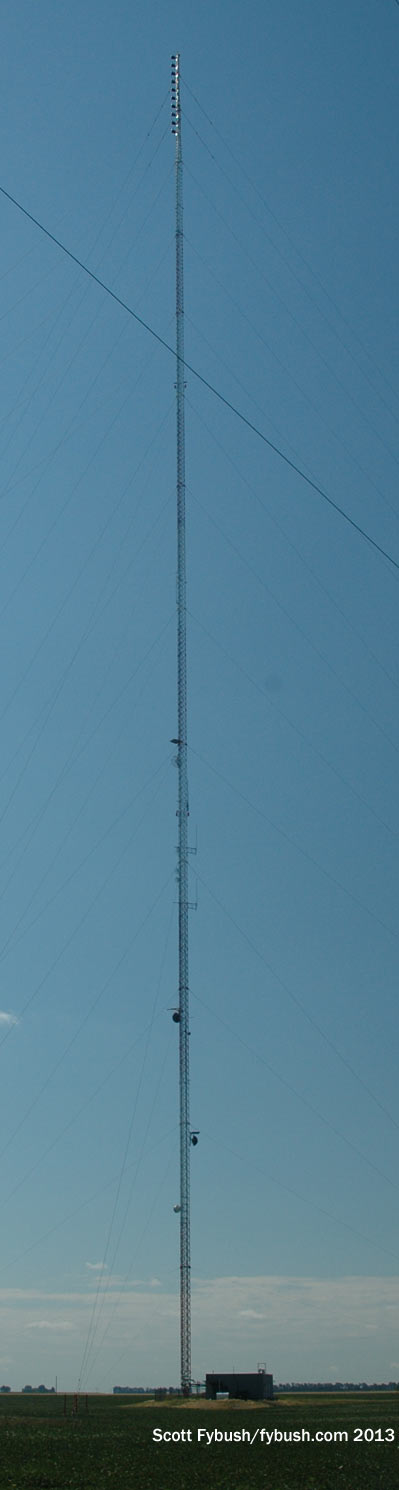

WDAY-FM

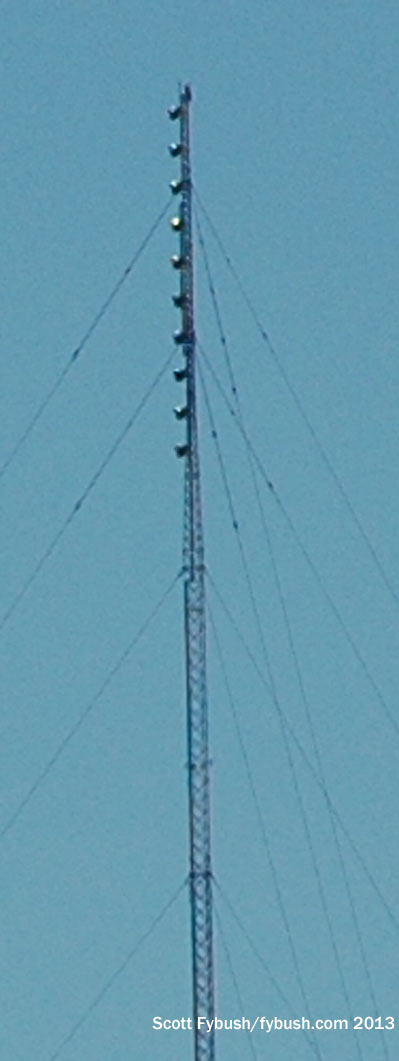

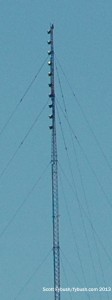

KFNW-FM

93.7/97.9/101.9
93.7/97.9/101.9

WDAY-TV
WDAY-TV

WDAY-FM (93.7) used to be on the WDAY-TV tower until WDAY sold the FM (and only the FM) to Clear Channel in 2000. That's when "Y94" moved just a smidge to the north and east, joining religious KFNW-FM (97.9) on the thousand-footer it had built in the mid-1990s. The third FM sharing the 8-bay antenna here is KRWK (101.9 Fargo), and we'll hear more about it and WDAY-FM in our next installment.

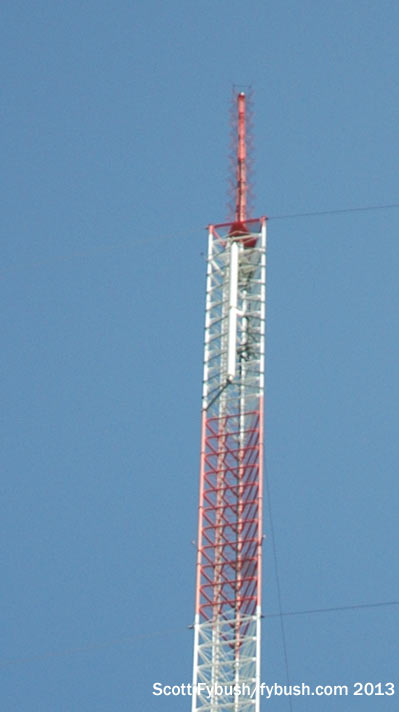

Back over at the WDAY site, the old channel 6 antenna still sits at the top of the tower, with the current RF 21 DTV antenna side-mounted below it.

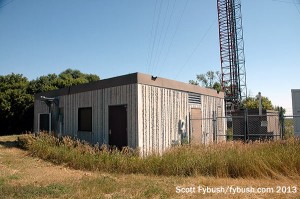

KFME's building
KFME's building

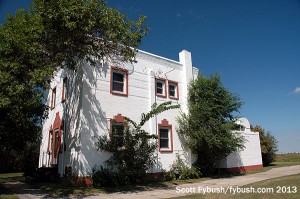

Old WDAY(AM) building
Old WDAY(AM) building

From here, we continue south down ND 18 and then eastward on I-94 back into Fargo, where our first stop is a ghost. WDAY radio started way back in 1922, back when the K-W callsign line was at the western state line of the Dakotas, and from 1928 until early 2013 its transmitter site was right on Main Avenue (US 10) at a location the FCC's file cards once described simply as "Outskirts, West Fargo, N.D."

A storm in 2011 toppled one of the three towers in WDAY's array here and damaged the other two, and the station limped along under STA from this site while building out a new site way out to the southeast of town near Barnesville, Minnesota. In the summer of 2013, the transmitter building and one tower still remained here, but the site was silent and the long broadcast history at this location had come to a close.

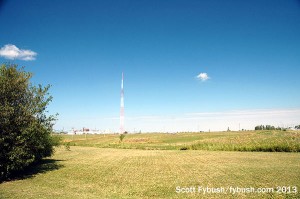

The old WDAY(AM) site
The old WDAY(AM) site

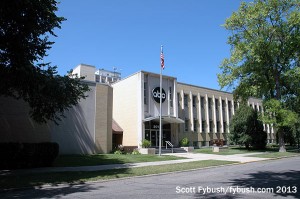

The WDAY TV/AM studios
The WDAY TV/AM studios

Our next stop along the way is in a leafy neighborhood just south of downtown Fargo, where WDAY-TV and WDAY(AM) occupy an imposing building on South Eighth Street. The main part of this three-story facility (at right in the photo above) used to be an insurance company's headquarters before the Fargo Forum, owner of the WDAY stations, moved them here from downtown Fargo in the late 1970s. (We'll see the old WDAY building again in our next installment.)

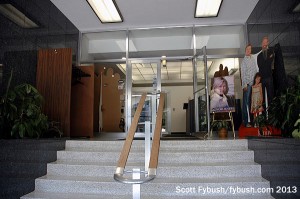

Welcome to WDAY!
Welcome to WDAY!

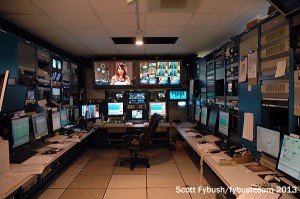

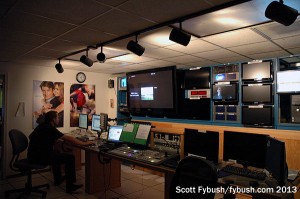

TV master control
TV master control

Climbing the imposing stairs to the lobby, we head out of the office part of the building and over to the TV studio that was added to the south side when WDAY moved in. Master control here handles not only Fargo's WDAY-TV (Channel 6) and WDAZ (Channel 8) in Grand Forks/Devils Lake but also two more ABC affiliates in western North Dakota, KBMY in Bismark and KMCY in Minot, so if you're watching the Alphabet Network in North Dakota, it's coming through master control right here.

TV control room
TV control room

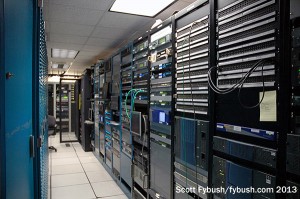

Rack room at WDAY
Rack room at WDAY

The control room here handles WDAY-TV's local newscasts, which are also seen up north on WDAZ at all times except 6 and 11 on weekdays, when a small studio in Grand Forks produces local news for that area. WDAY-TV's studio is out back here, and there's a big garage behind there that houses remote trucks that roam the state producing local sports and other programming.

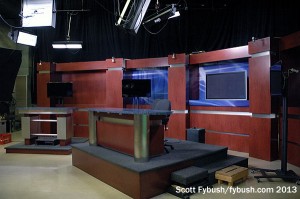

WDAY-TV studio
WDAY-TV studio

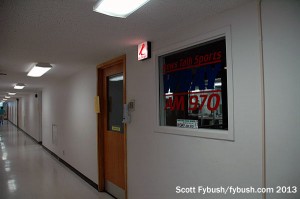

WDAY's downstairs hallway
WDAY's downstairs hallway

Back we go into the basement of the main building, where a long institutional hallway leads into both the AM studio and the adjoining newsroom for both AM and TV. WDAY radio does a lot of simulcasting of the TV news, but it also has a robust lineup of local talkers in its glassed-in studio looking out into the TV newsroom.

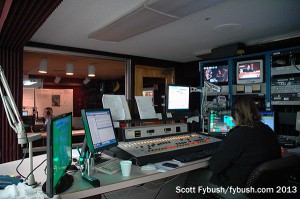

AM studio and control room
AM studio and control room

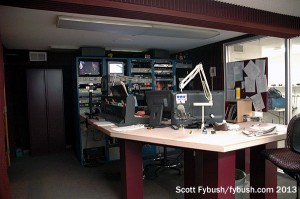

Another control room view
Another control room view

(When WDAY-FM was still owned by the Forum, its studios were located in another office building on this campus, a taller block that sits right behind the main WDAY building.)

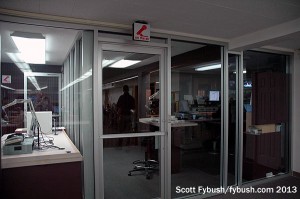

Radio studios, from the newsroom
Radio studios, from the newsroom

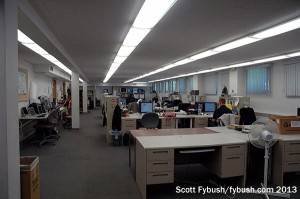

WDAY newsroom
WDAY newsroom

From here, we pile into the car with WDAY engineer Dave Johnson for the ride out I-94 to see the AM station's new transmitter site. The move from West Fargo to Barnesville gave AM 970 a power boost from 5 to 10 kW fulltime, not to mention the benefit of a new facility built to modern standards from the ground system up.

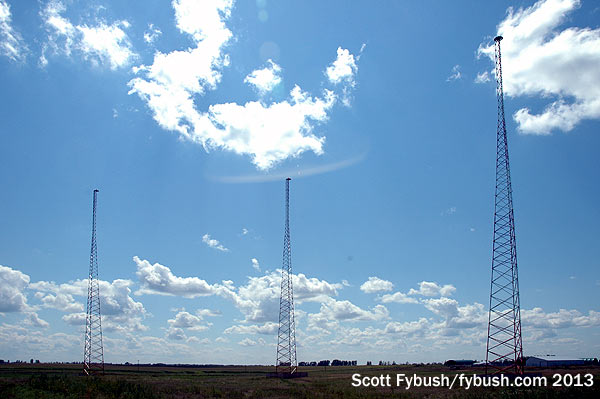

WDAY's new towers
WDAY's new towers

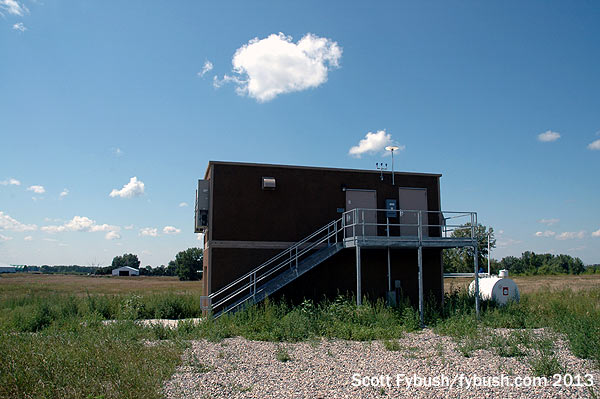

WDAY's new transmitter building
WDAY's new transmitter building

WDAY's three new self-supporters sit within sight of I-94, about 20 miles southeast of Fargo over on the Minnesota side of the Red River, and what this site lacks in the charm of the old one, it makes up in hardened utility. The prefab transmitter building is an unusual two-story configuration, with a garage on the lower level for storage and the transmitter room and generator space elevated high above the floodplain. Even at a distance from the Red River, the flat, flat land here means that when the river floods - and it does - it can get quite wet here. Inside, the compact setup features a Harris DX10 as the rock-solid main transmitter.

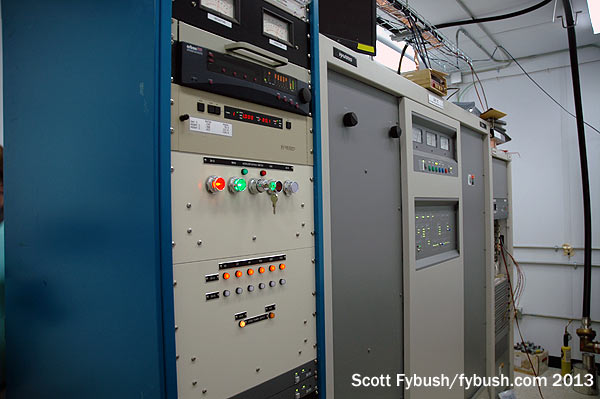

WDAY transmitter
WDAY transmitter

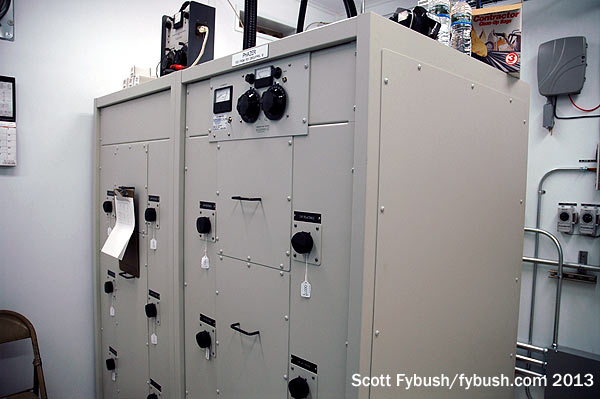

WDAY phasor
WDAY phasor

And all of this is just half the fun we had among the friendly radio and TV folks of Fargo! In part two, coming Dec. 12, we'll visit public TV and radio, the KVLY/KXJB studios, a whole bunch of AM towers and we'll even get mentioned on the radio...stay tuned.

Thanks to KVLY's Doug Jenson, KXJB's Ron Barr and WDAY's Dave Johnson for the tours!
