Site of the Week 12/19/2014: St. Cloud MN (Big Trip 2013 Part 9)

Scott Fybush by Scott Fybush
December 19, 2014
in Big Trip 2013, Free Content, Minnesota, Tower Site of the Week
0

Text and photos by SCOTT FYBUSH

If we’d known how interesting the radio scene in St. Cloud, Minnesota is, we might not have saved it for the last few hours of Big Trip 2013. But we didn’t – and so we came flying down I-94 from Fargo-Moorhead pretty late on a Friday afternoon with a flight to catch the next midday out of Minneapolis-St. Paul.

Luckily for us, we had a top-notch local guide in the person of engineer Alex Hartman, and even luckier for us, early August in the North County features some delightfully late sunsets, which meant we could see nearly all of the market in the lingering hours of dusk, with just a few towers to pick up on the way out of town the next morning.

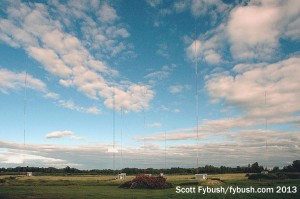

Behold the Quadplex!
Behold the Quadplex!

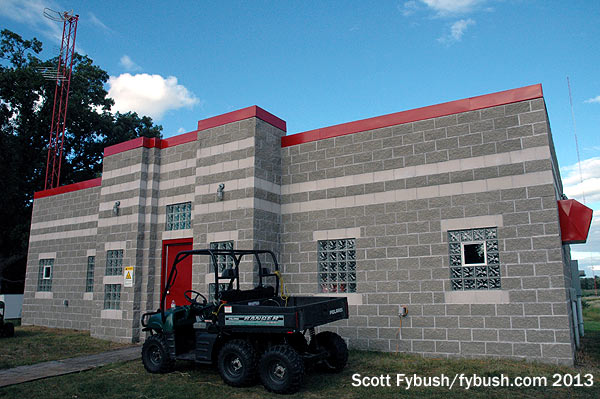

Transmitter building
Transmitter building
Quadplex, from the north
Quadplex, from the north

There wasn’t much question what our first stop would be – we pulled in to town just a few months after one of Alex’s clients, veteran broadcaster Herb Hoppe, had finished construction on one of the most remarkable AM sites anywhere in America. Just across the river in Sauk Rapids, Hoppe has quietly assembled a cluster that includes one FM (WHMH-FM 101.7) and no fewer than four AM signals, all of them sharing a single seven-tower site just off US 10.

The “quadplex” started out as just one station, 250-watt non-directional daytimer WVAL (800), but over the years WVAL shifted to 660 and eventual full-power operation (with a big 10 kW daytime signal from four towers). The 660 signal became sports WBHR (“the Bear”) and then spawned a new incarnation of WVAL back on 800 – and then Hoppe’s son Gary added two more AMs much later in the game, WMIN (1010) and WXYG (540), with three more towers added to 660’s original four!

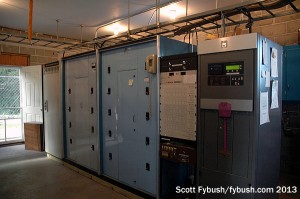

WMIN 1010
WMIN 1010

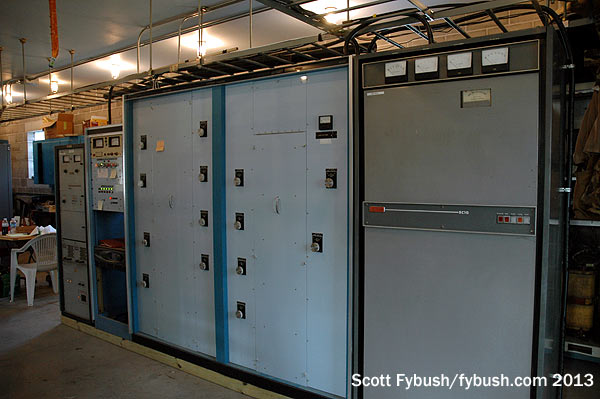

WVAL 800
WVAL 800

The quadplex site, just a short drive from Hoppe’s Sauk Rapids studios (we’ll see those in a bit), started out as just 660 when it went to higher power, but with the help of consultants Mark Mueller and Mark Persons, it’s become something much more complex and – we’ll say it – beautiful. Each of these four AMs is a DA-2, so over the course of 24 hours there are eight patterns that emanate from these towers, with all the added complication of reject filtering and bandwidth that can make just a simple diplex a nightmare, never mind four stations at once.

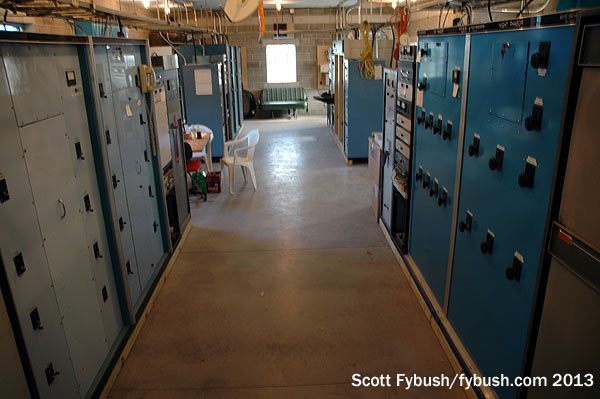

Inside, the new transmitter building at the site had been under construction the last time our traveling companion Garrett Wollman was here a few years earlier. By the summer of 2013, it was finished, and it was neat as a pin, with each station getting one corner of the building for its own individual combination of main and aux transmitter, STL and phasor.

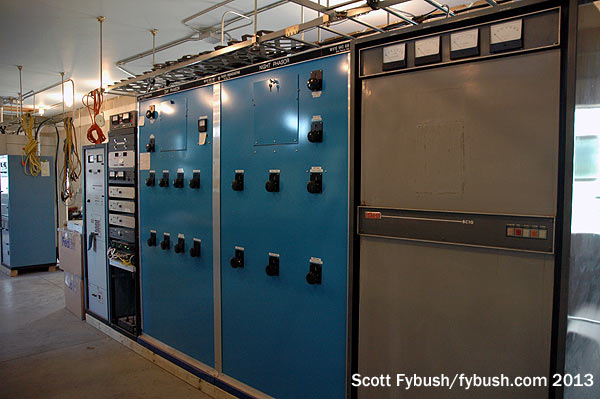

WXYG 540
WXYG 540

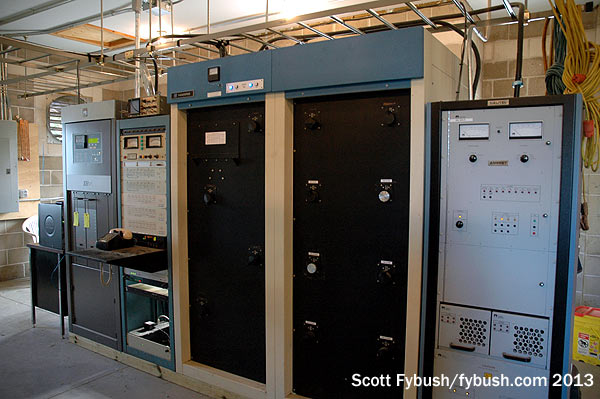

WBHR 660
WBHR 660

Out back, neatly mowed paths through the reeds go back to the towers, which boast enormous numbers of the door of each ATU building for easy identification of which stick is which. (I’m told this bit of detail seriously impressed a visiting FCC inspector, as well it should have!) The combining and filtering takes place inside each ATU building, and you can read Mark’s article in Radio World for more detail on how the magic happens.

How impressive is this site? So much so that it was a no-brainer to pick it as the “cover girl” for Tower Site Calendar 2015, still available from a Fybush Store near you.

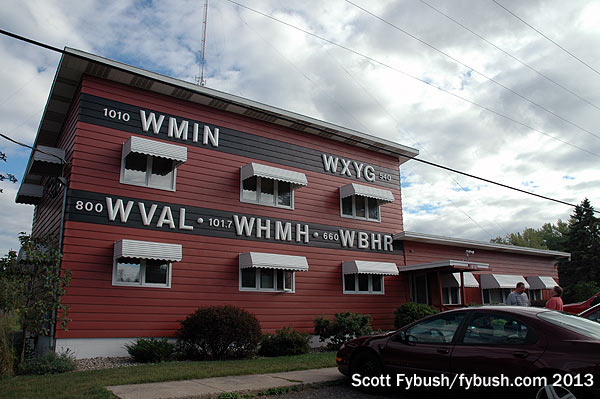

The Red House
The Red House

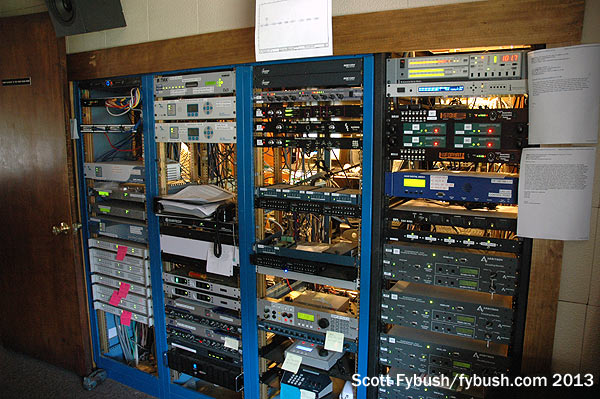

Rack room
Rack room

Hoppe’s studios are in the “Big Red House” just outside downtown Sauk Rapids. This was the original WVAL (800) studio and transmitter site, and the tower out back was later WHMH’s site before it upgraded to a C2 from south of town.

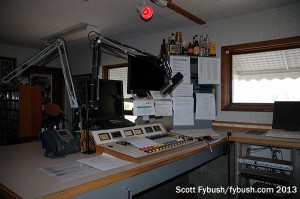

WHMH air studio
WHMH air studio

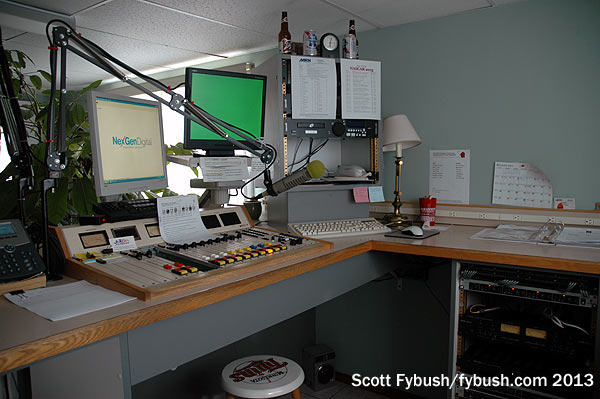

WVAL 800 studio
WVAL 800 studio
KCML 99.9
KCML 99.9

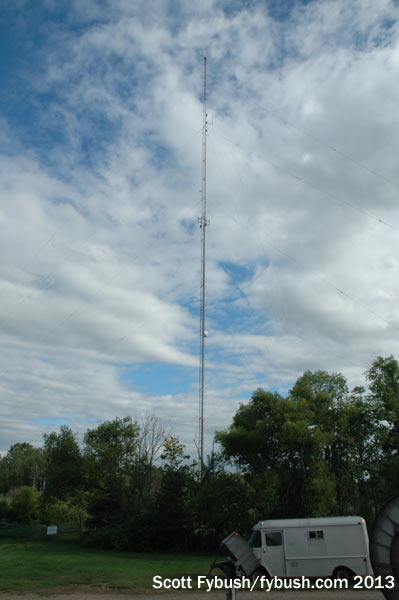

WHMH aux tower
WHMH aux tower

Inside the Red House, there are studios off to the right of the door (modern rock WHMH and classic country WVAL have the most air talent; WBHR is largely ESPN Radio, and standards WMIN “Uptown 1010” and classic rock WXYG “540 the Goat” are automated) and offices to the left; directly in front is the rack room where Alex has rigged up all that automation to keep the five-station cluster humming.

Upstairs, there’s more studio space, including an attic area where the stations keep their remote gear tested and running for the live sports WBHR and WVAL do.

(WVAL, by the way, was marking its 50th anniversary when we visited; its calls come from Herb Hoppe’s wife, Val!)

Heading back into town, we next turn our attention to the stations of Leighton Broadcasting, whose holdings here include KNSI (1450), KCML (99.9), KZPK (98.9) and KCLD-FM (104.7).

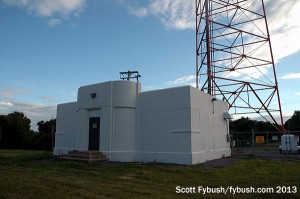

KNSI/KCML transmitter building
KNSI/KCML transmitter building

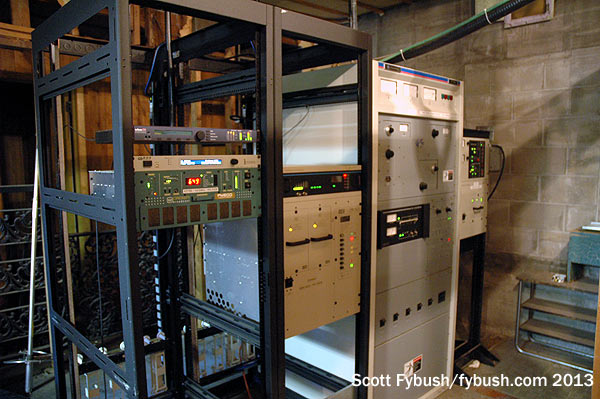

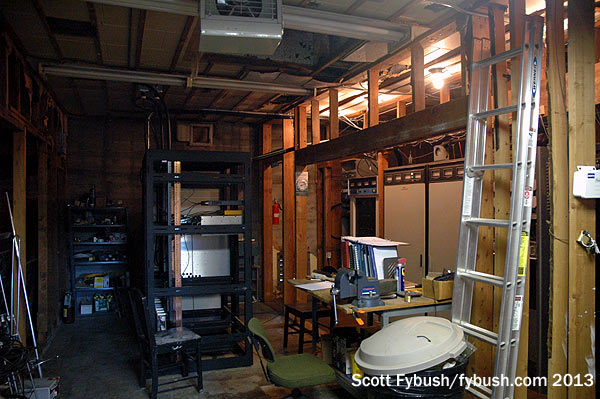

KNSI/KCML transmitter room
KNSI/KCML transmitter room

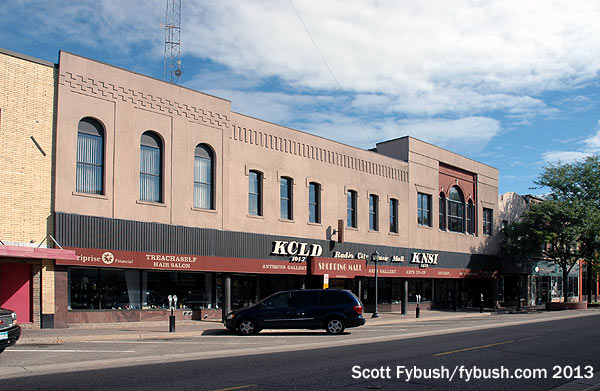

The Leighton studios are right in the heart of downtown St. Cloud, and the KNSI/KCML site is just south of town with a venerable Art Deco building and a tall self-supporting tower. The inside of the building has largely been gutted, but you can still see where the walls around the old transmitters were; the current rigs for KNSI, KCML and KNSI’s FM translator, K277BS (103.3) now sit in what was presumably once a studio or office area. KNSI’s history, incidentally, goes all the way back to 1938, when this station was known as KFAM.

KNSI/KCML
KNSI/KCML

KNSI/KCML studios
KNSI/KCML studios

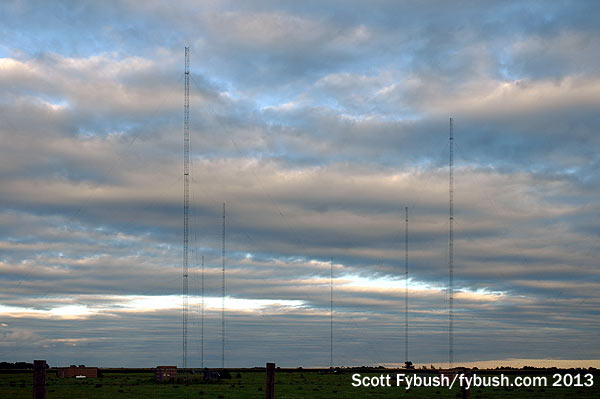

With daylight waning, we race southward to catch another even more powerful new addition to the St. Cloud dial. KYES (1180) is licensed to Rockville, 20 miles or so to the south, and it hit the airwaves in 2012 with Catholic programming. Its original licensee was the “Throw Fire Project,” and that’s fitting for a station that cranks out 50,000 watts during daylight hours, all of it aimed north at St. Cloud. At night, KYES goes from two towers to all six and drops to 5,000 watts, still aimed north.

KYES 1180
KYES 1180

KYES 1180
KYES 1180

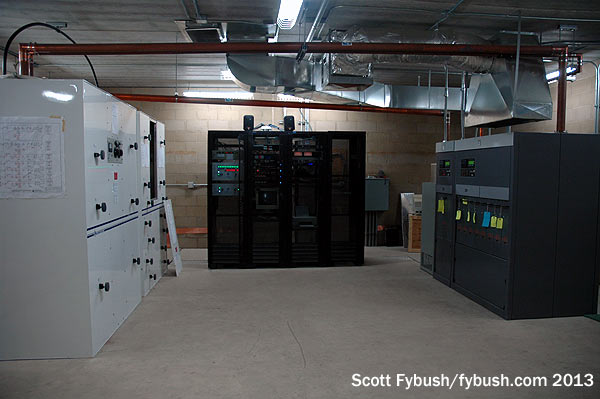

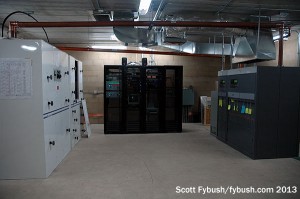

There’s a pretty sizable concrete block transmitter building out at this remote site, too, but there’s not much in it: the new Nautel transmitter is as compact as 50,000 watts gets, and it’s dwarfed by the phasor that keeps it company at one end of the room.

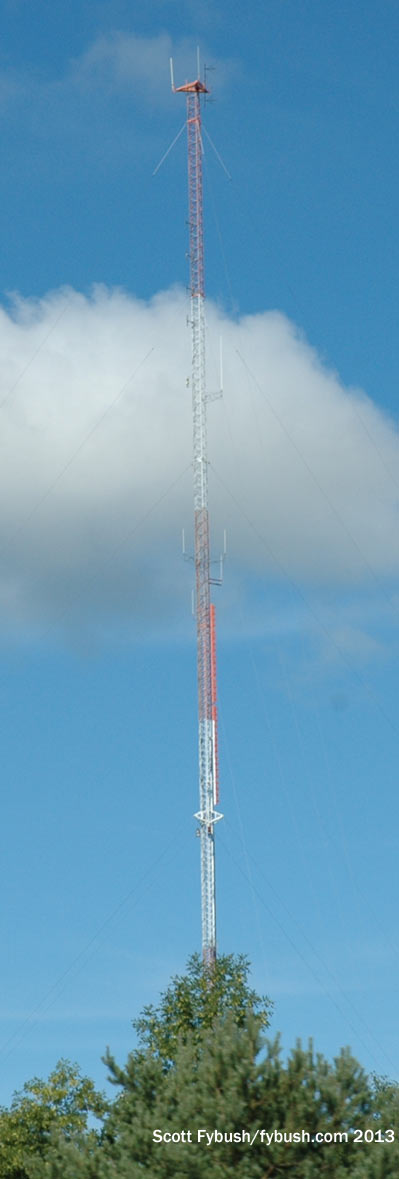

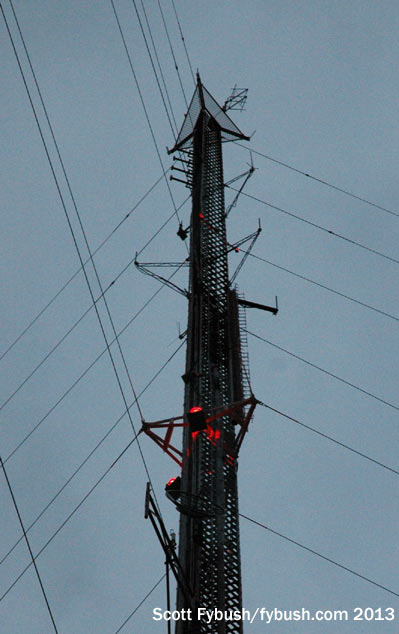

KVSC's tower
KVSC’s tower

KVSC's antenna
KVSC’s antenna

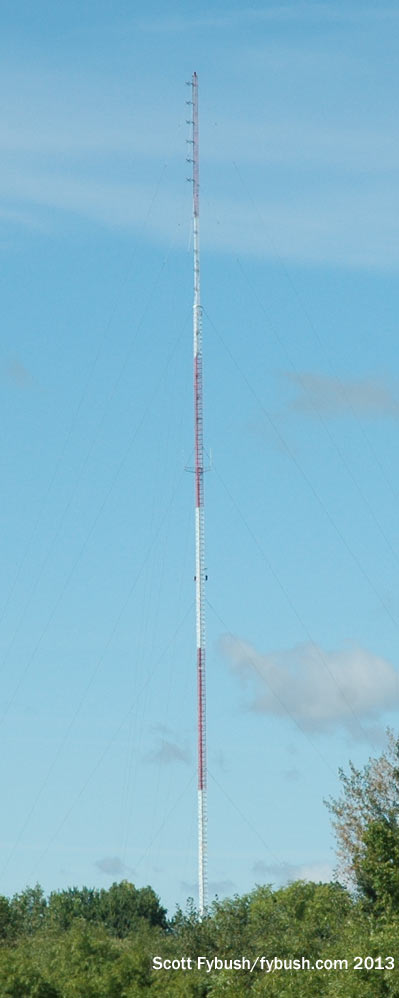

WHMH
WHMH

Back into town we go, by way of Alex’s own pride and joy (and full-time employer). That’s St. Cloud State University’s KVSC (88.1), and we find its tower sits south of St. Cloud near the I-94 interchange and the WHMH tower. What you see here is a “before” picture: a few months afterward, Alex became the very first US engineer to install one of Nautel’s brand-new GV series transmitters in this room, which was also repainted in the colors of the university.

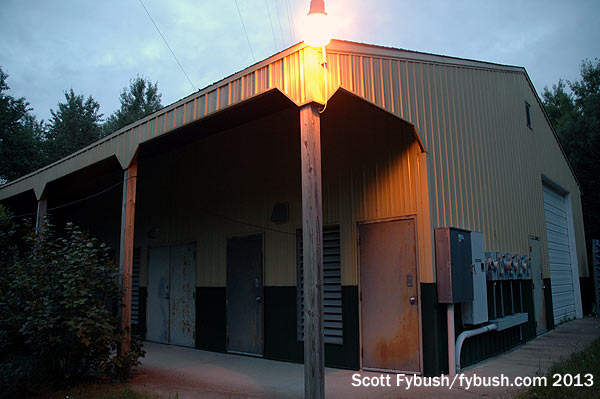

KVSC transmitter building
KVSC transmitter building

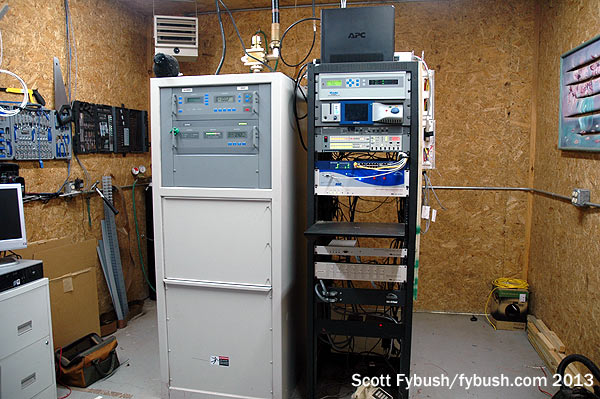

KVSC transmitter room
KVSC transmitter room

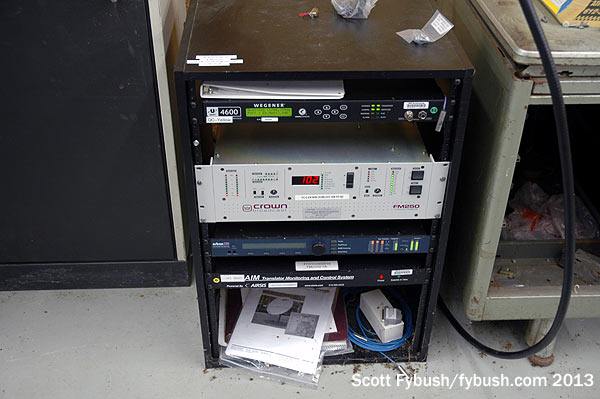

This leased transmitter site also houses plenty of two-way users, and since it’s been a while since we’ve showed you a translator, here’s a look at EMF Broadcasting’s K208DV (89.5), which operates from a little corner of Alex’s room here.

K208DV
K208DV

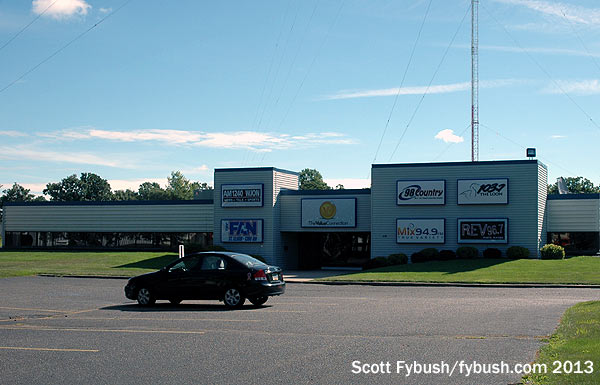

Townsquare St. Cloud
Townsquare St. Cloud

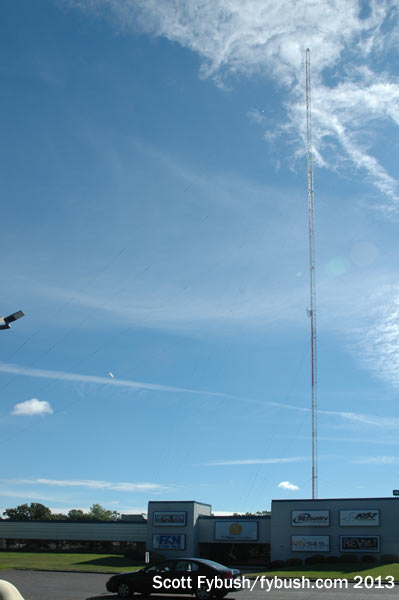

WJON 1240
WJON 1240

Townsquare Media owns the other sizable commercial cluster in town, which includes the second-oldest AM in St. Cloud, WJON (1240), and it makes its studio home – and AM transmitter, too – just across the bridge from downtown St. Cloud. Townsquare’s FMs – big class C WWJO (98.1) and smaller sisters KMXK (94.9), KZRV (96.7) and KLZZ (103.7) – are all outside of town, and we don’t get to see them this trip.

(WJON, incidentally, dates back to 1950, when it was owned by the Granite City Broadcasting Company and operating from the St. Cloud Hotel; that “Granite City” nickname for St. Cloud would later attach itself to the Granite City Food and Brewing restaurant chain, of which restaurant #1 is not only here in town but also our dinner stop fairly late on this long evening of tower-hunting.)

For a college station these days, KVSC is unusually ambitious, and Alex is rightfully proud to show off its studio complex on the university campus.

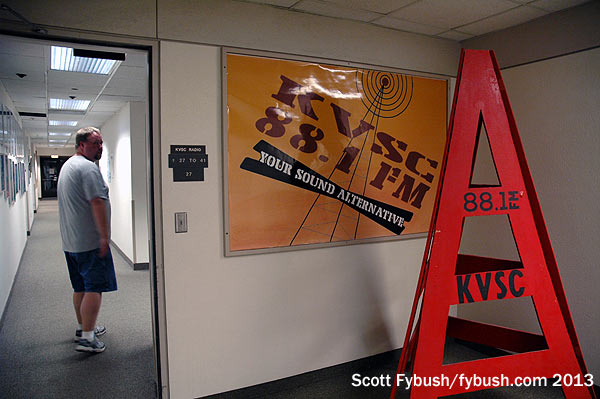

In 2013, the university was still building out a top-notch HDTV production facility here to do college sports and news, and KVSC itself is just down the hall behind a door marked with a nifty tower replica.

Welcome to KVSC!
Welcome to KVSC!

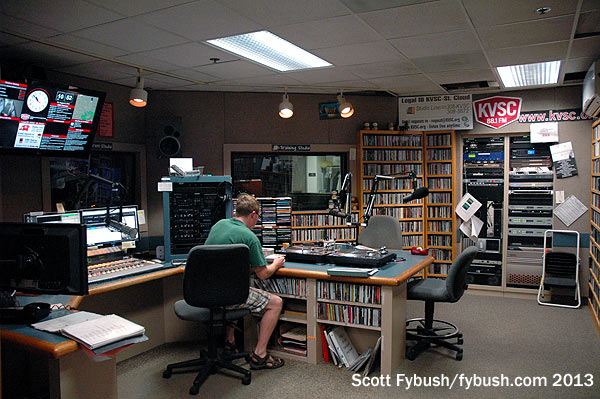

KVSC air studio
KVSC air studio

At the heart of KVSC is a complex of studios that includes a big on-air control room, a production room, a practice studio where students can learn how everything works before hitting the live airwaves, a news booth – and across the hall (adorned with many years’ worth of posters from the station’s big annual trivia fundraiser) there’s a live music production room complete with a spiffy HD monitor that descends from the ceiling.

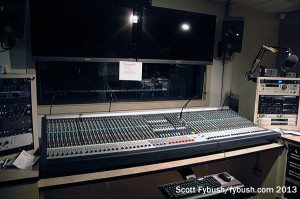

KVSC production room
KVSC production room

KVSC lounge
KVSC lounge

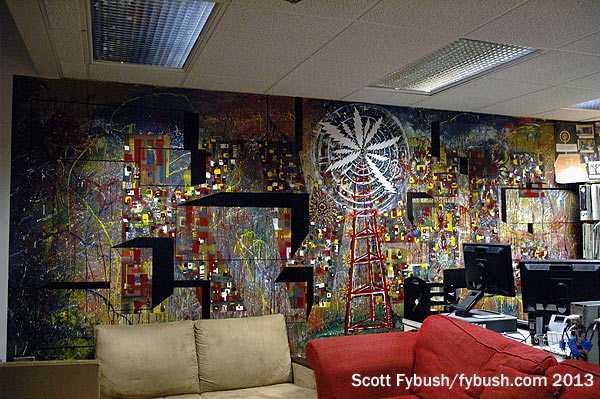

At the far end of KVSC’s studio space are staff offices and a lounge decorated with a trompe l’oeil 3D mural – and that, in turn, looks right out onto a terrace overlooking the Mississippi River. How cool is that?

KXSS 1390
KXSS 1390

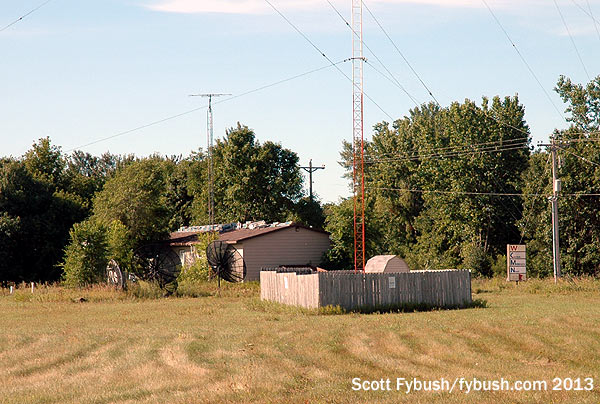

KXSS transmitter building
KXSS transmitter building

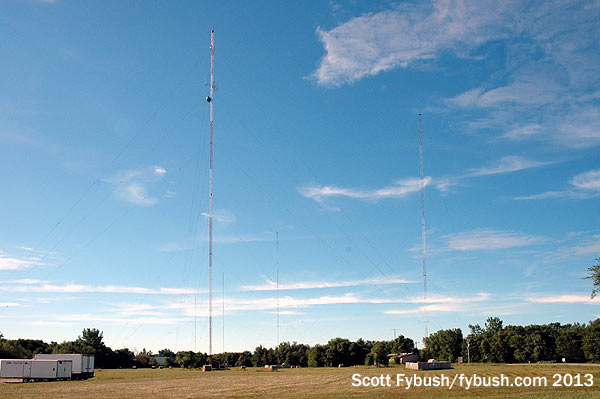

Townsquare’s other AM is sports KXSS (1390 Waite Park), with a four-tower array at its former studio site at the western edge of town. Look carefully next to the building and you can see the “WCMN” (Central Minnesota News) calls – that, I believe, was an LPTV that tried to do local news for this market, which otherwise gets its TV from the Twin Cities 60 miles away. (There’s one TV station licensed to St. Cloud, ion Media’s KPXM channel 41/RF 40, and it boasts an interesting history of its own. As independent KXLI, it tried to rimshot Minneapolis with one of the very first all-retro lineups in the country. “TV Heaven 41” was the ancestor of MeTV, Antenna TV and all today’s other subchannels; it survives today largely in the form of a big sign in the back room of the Pavek Museum in the Twin Cities. KPXM has a CP to move from its current tall tower east of St. Cloud to the Shoreview tower farm in the Twin Cities, but it hasn’t yet relocated.)

And that wraps up our long look at the upper Midwest from Big Trip 2013 – glad you could make it along for the ride!

Big thanks to Alex Hartman for the tours!
