Site of the Week 3/4/16: Raleigh, NC

Scott Fybush by Scott Fybush
March 20, 2016
in Free Content, North Carolina, Tower Site of the Week
0

Text and photos by SCOTT FYBUSH

It’s amazing how time flies when you’re having fun out on the road photographing tower and studio sites. It’s been almost exactly 13 years since we last crossed paths with the Raleigh-Durham market, back on a whirlwind 2003 expedition into the Carolinas, and somehow we’ve now done deep dives into that market twice in less than six months.

WPTF
WPTF

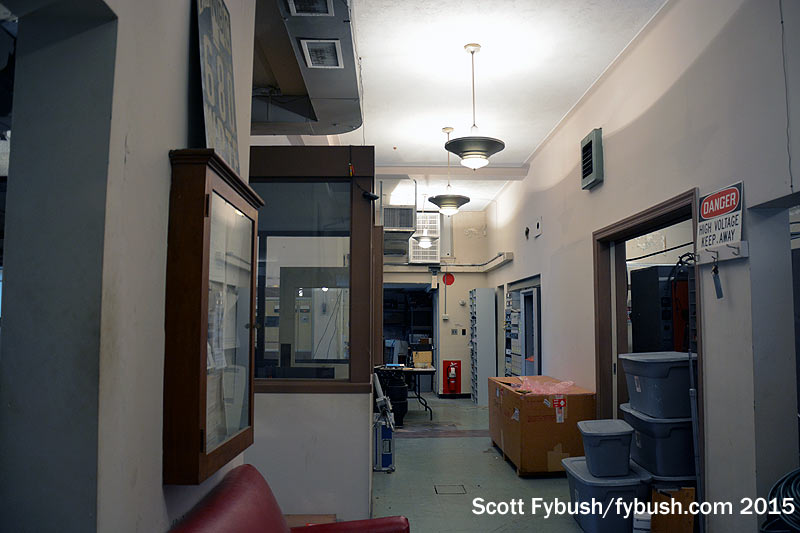

Looking into the WPTF building
Looking into the WPTF building

The first of our two recent visits was in late September, on the way down to the NAB Radio Show in Atlanta, when we spent a delightful morning checking out some of the sites that belong to local owner Don Curtis.

The booth
The booth

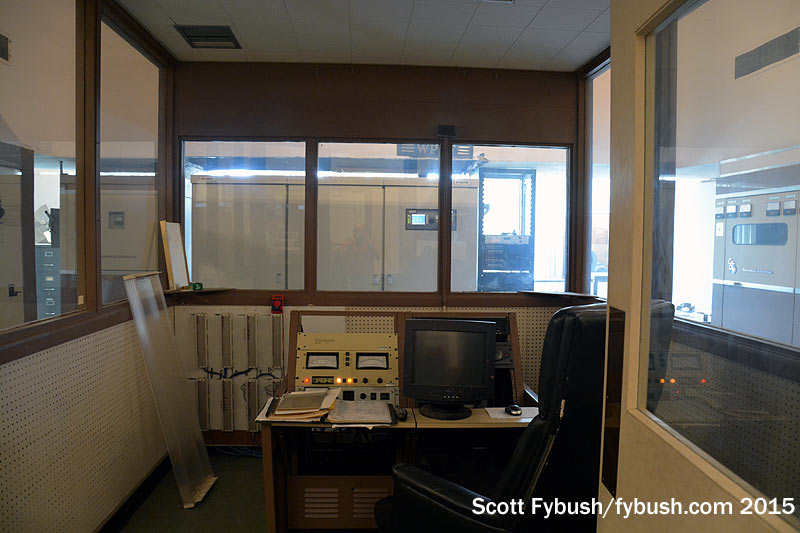

Inside the booth
Inside the booth

Foremost among his holdings, at least from the point of view of tower hunting, is WPTF (680 Raleigh), the big 50,000-watt signal that’s heard far and wide from its site in Cary, halfway between Raleigh and Durham.

WFNL 570 and the WPTF phasor
WFNL 570 and the WPTF phasor

WPTF's backup
WPTF’s backup

Last time, all we did was drive by; this time, we enjoyed an extensive peek inside, where WPTF has been joined by two other signals in recent years. WFNL (570 Raleigh) moved here a few years ago from a site closer to Raleigh; WKIX (102.9 Raleigh) has a heritage set of calls but is a fairly recent drop-in.

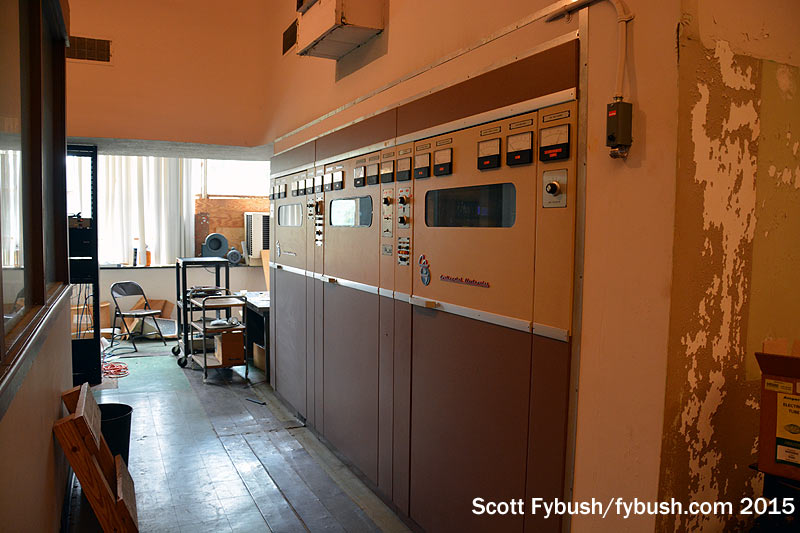

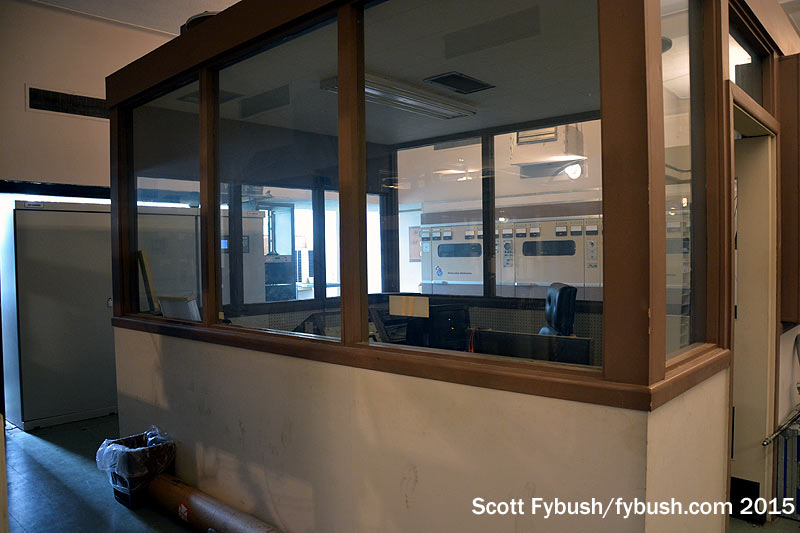

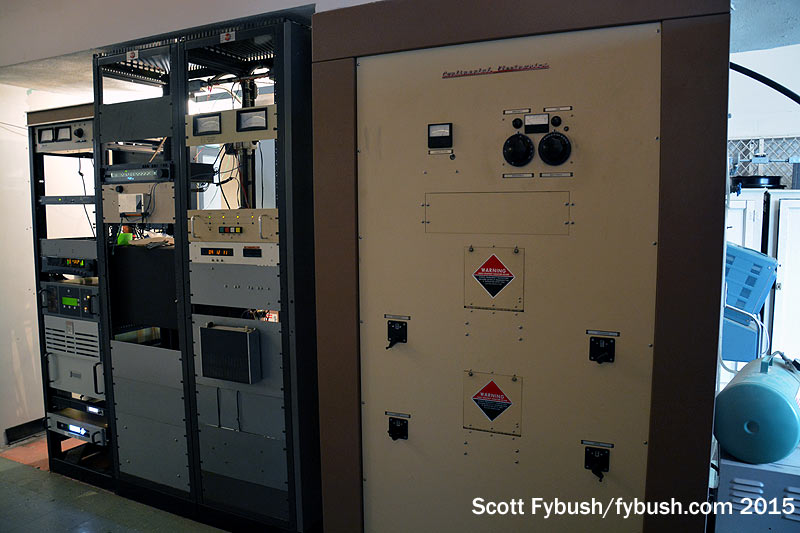

WFNL’s comedy format comes from the little rack at top left, on the left side of a U-shaped arrangement of transmitters that surrounds an unusual enclosed control booth at the center of the big transmitter room. WPTF’s night phasor is also on the left; a Harris DX-50 is the main WPTF transmitter straight ahead of the booth, and a Continental 317-series is the WPTF backup on the right.

WKIX 102.9
WKIX 102.9

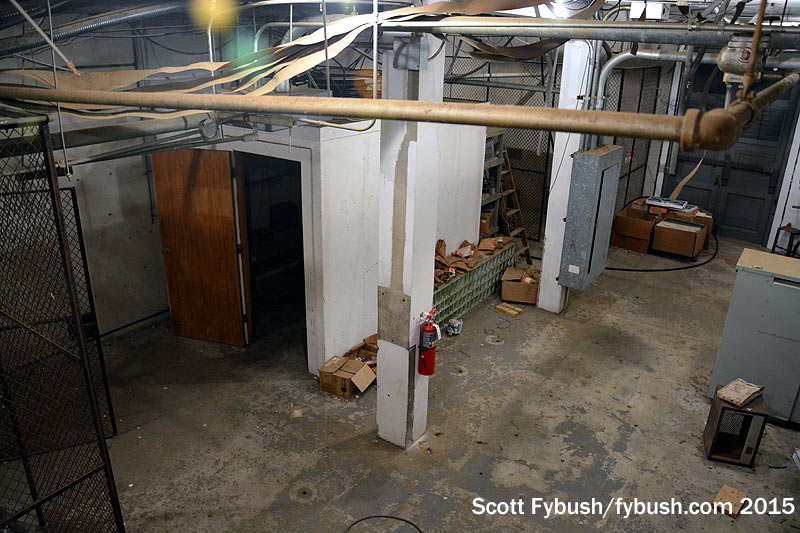

WPTF's basement
WPTF’s basement

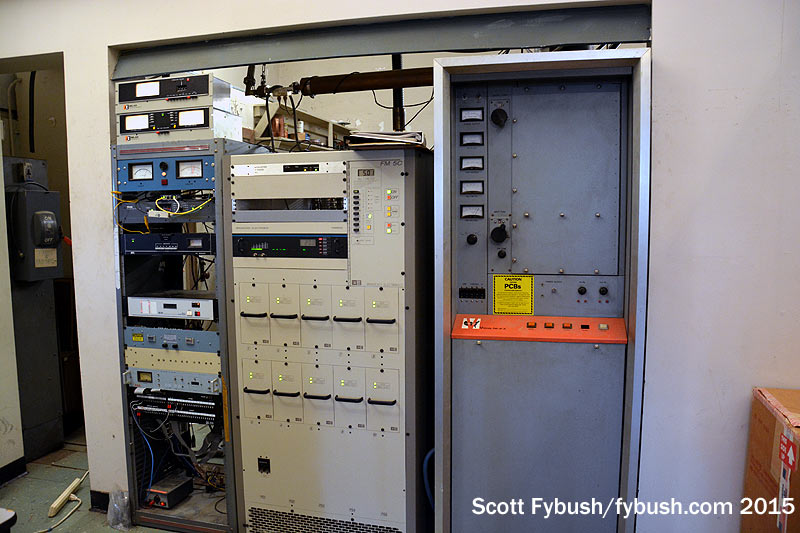

WKIX’s main and backup transmitters sit behind the control booth, backing up to a storage area. I suspect this was where WPTF-FM used to be; we’ll catch up with its current location in a bit.

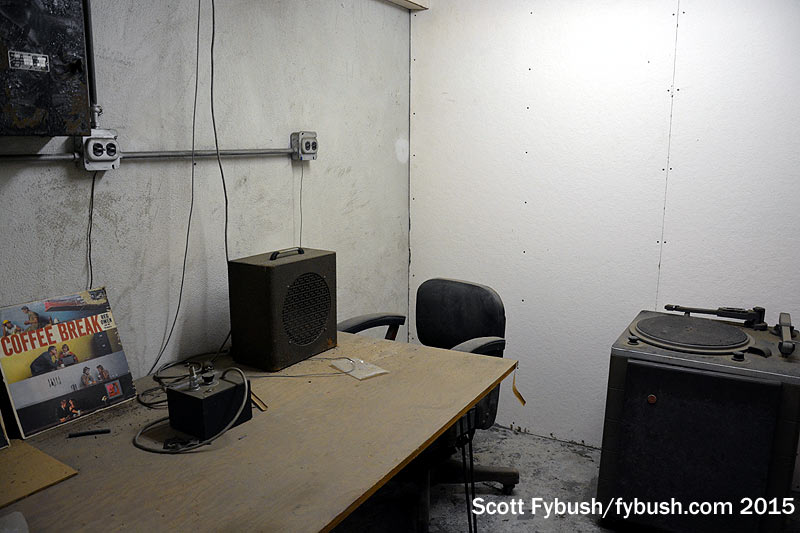

There’s a huge basement at this site, which was once filled by power transformers. This space includes an enclosed fallout shelter with some very vintage equipment and that distinct scent that can only belong to an old transmitter site storage room.

Emergency shelter
Emergency shelter

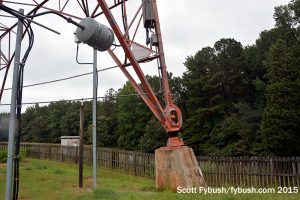

Tower base
Tower base
WPTF's towers
WPTF’s towers
WKIX
WKIX

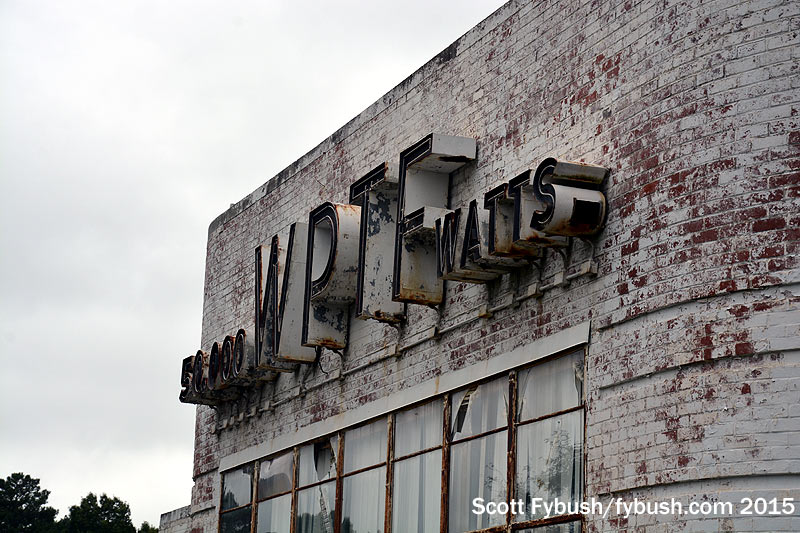

Outside on this gray September day, we admire the Deco architecture of the transmitter building exterior, with its big windows that still look into the main transmitter room and out to the train line that parallels East Chatham Street between the road and the site itself.

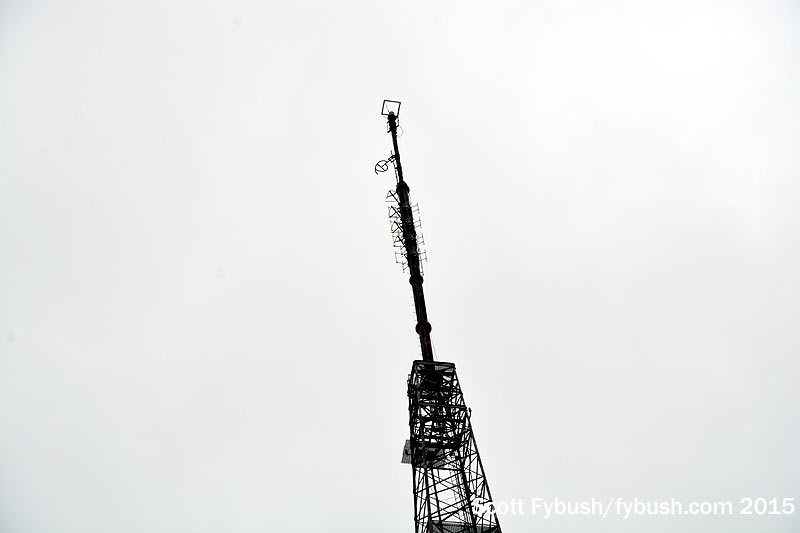

Out back, there are three towers here, the 500-foot day tower that’s now crowned by the the WKIX 102.9 antenna and for the 104.7 translator that relays another Curtis station, “Just Right Radio” WPTK (850), about which we’ll have more to say in just a moment.

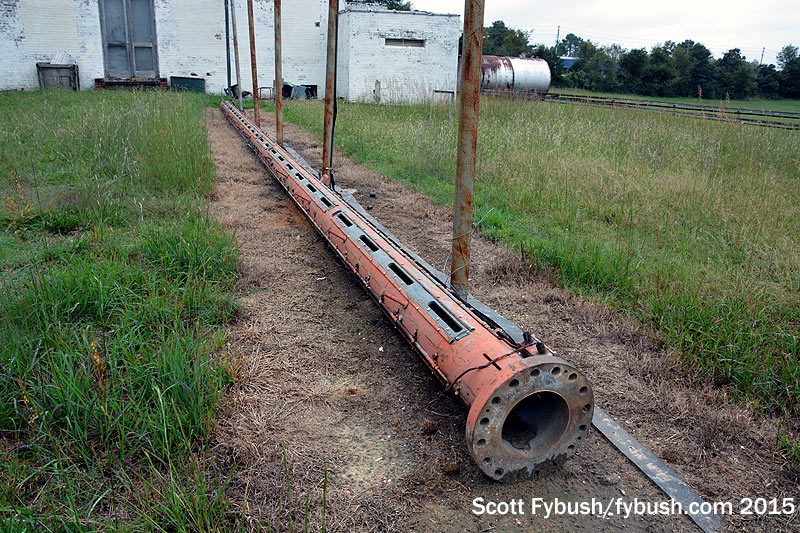

There’s an old slot antenna on the ground behind the building, too; I think this may have been WPTF-FM (94.7), or possibly WPTF-TV (Channel 28), which was at a different location.

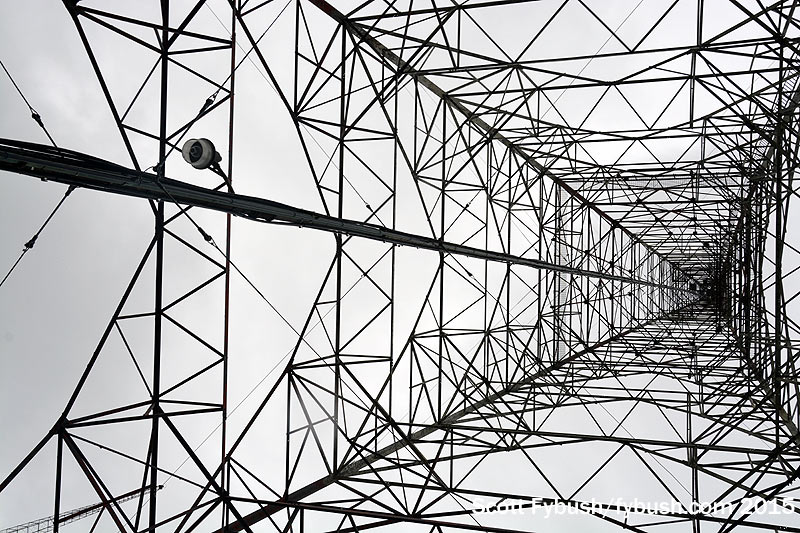

Looking up the big WPTF tower
Looking up the big WPTF tower

The old WPTF-TV 28
An old slot antenna

At one time, WPTF had a fierce rivalry with WKIX (850 Raleigh), but today Curtis owns both signals. 850 has tried many formats in recent years; when we visited, it had just flipped from “WPTF 850,” running a complementary talk format to 680, over to a variety hits format as “Just Right Radio.”

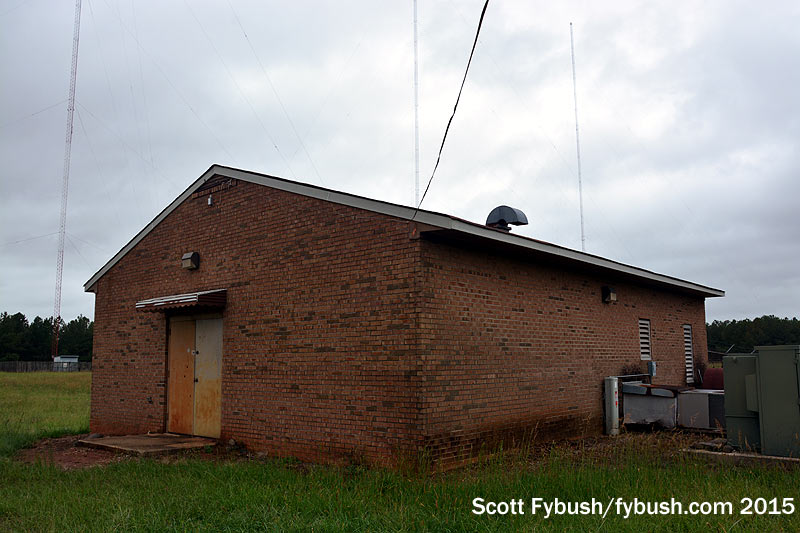

WPTK's building
WPTK’s building

WPTK 850
WPTK 850

Its current transmitter site dates only from the 1980s, after the original WKIX site (previously WNAO, for the News and Observer) succumbed to development. Today, this site west of Cary is itself heavily surrounded by newish development of its own.

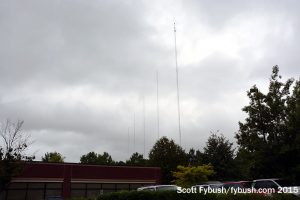

WPTK 850
WPTK 850

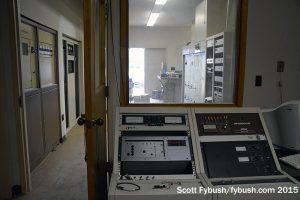

Control room at 850
Control room at 850

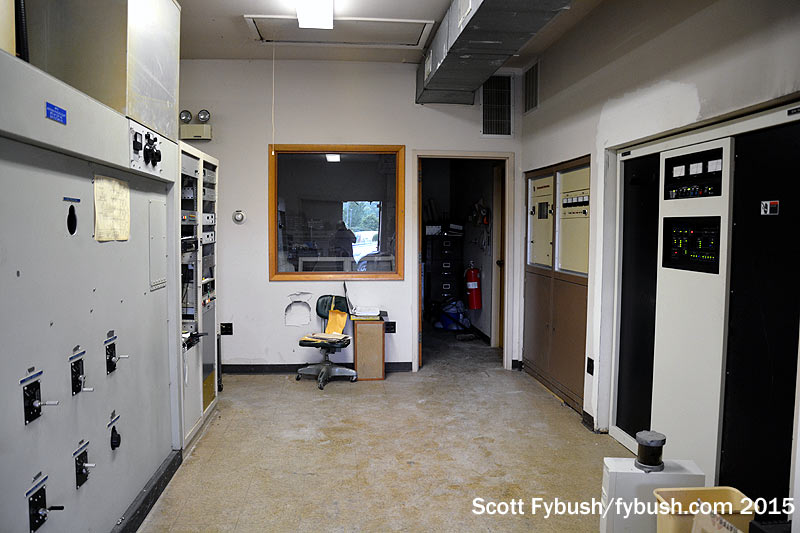

From here, WPTK runs 10 kW days, 5 kW nights, with a nice layout that parallels a Harris DX10 and Continental 316 on one side and a phasor on the other. There’s a control room at the back, and some spare studio furniture in front that could be used as an emergency studio if the need arose.

Curtis and Sinclair
Curtis and Sinclair

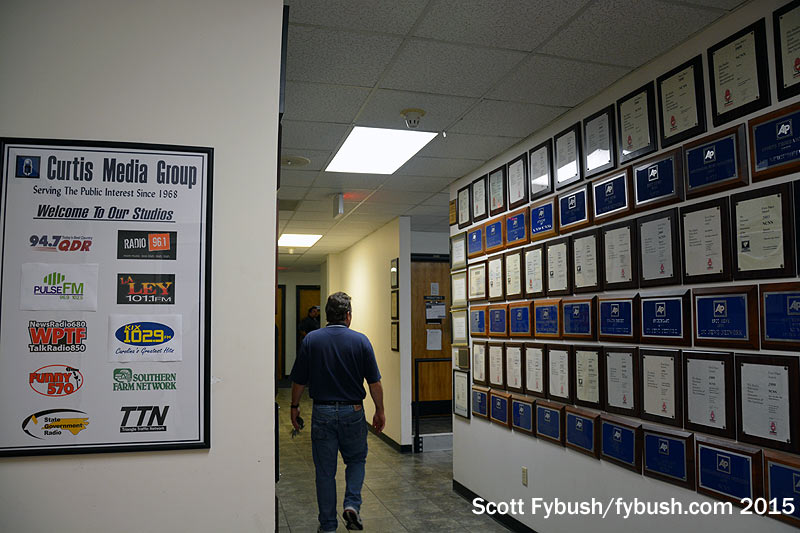

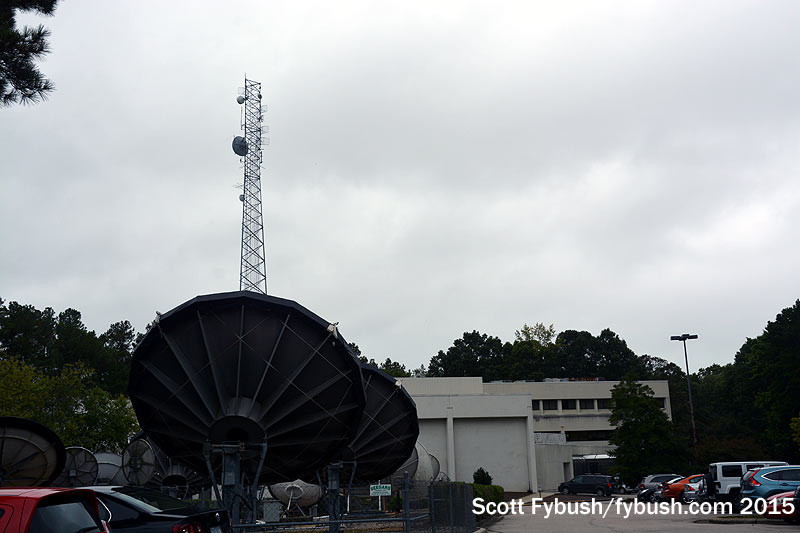

Curtis Media
Curtis Media

The Curtis studios are located northeast of Raleigh in the Highwoods office park, an area full of broadcasters. Capitol Broadcasting’s radio stations are right next door, iHeart is not far away – and Curtis itself shares a big building with WPTF’s former TV partner. Channel 28 is now My affiliate WRDC, while sister station WLFL-TV 22 is CW, and they’re owned by Sinclair and located on the lower floors of this building.

WPTF newsroom
WPTF newsroom

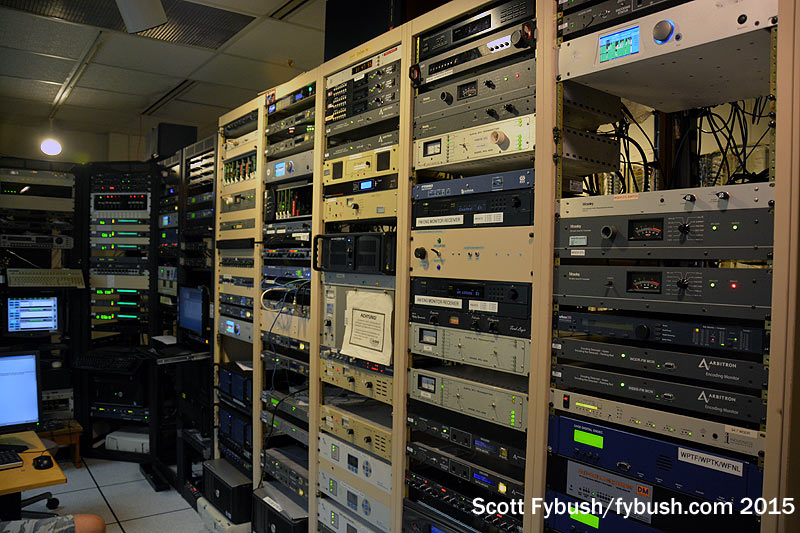

Rack room
Rack room

Curtis is upstairs, sprawling out along several wings of the building. The WPTF newsroom (and the North Carolina News Network) has pride of place along one wall, with several adjoining studios dedicated to the news operation. A big rack room separates the newsroom from a long line of studios on the other side of this wing.

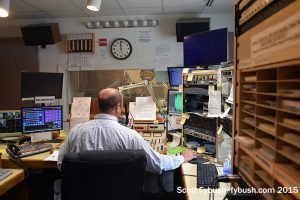

WPTF control room
WPTF control room

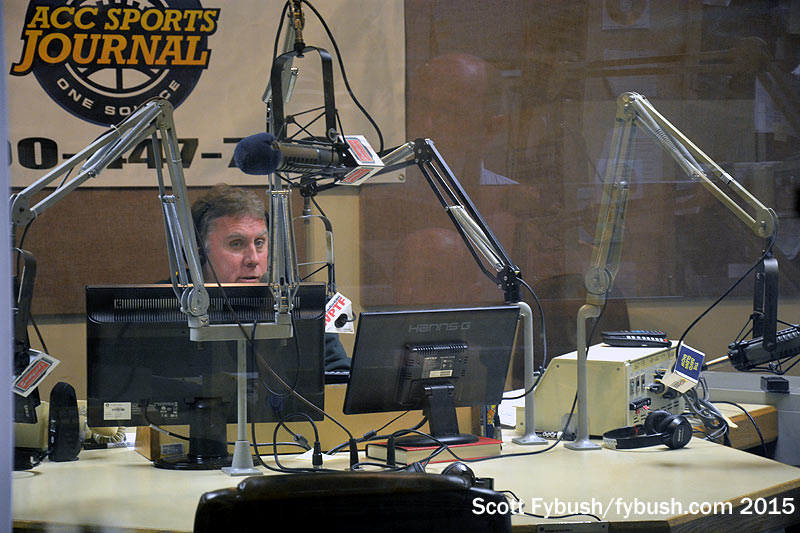

WPTF studio
WPTF studio

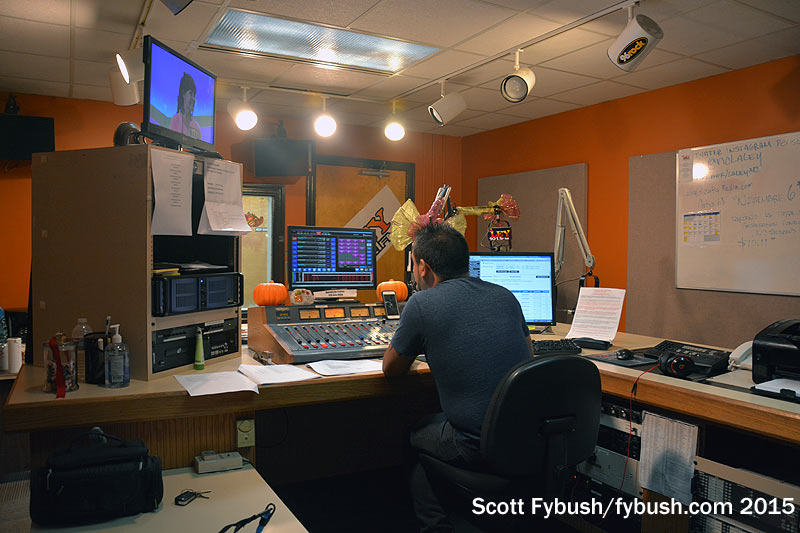

WPTF’s talk studio and control room anchor one end of studio row, adjoining studios for country giant WQDR (94.7, the former WPTF-FM). Spanish-language WYMY (101.1 Burlington) also has a spacious studio here.

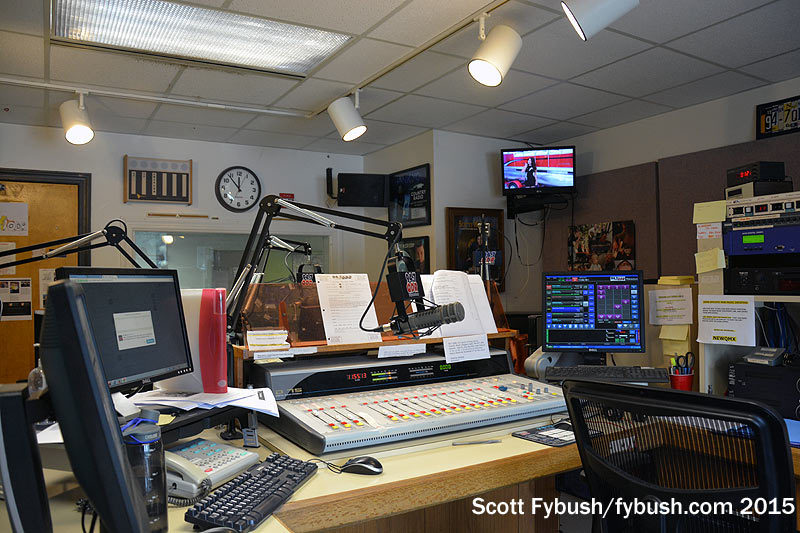

WQDR 94.7
WQDR 94.7

WYMY 101.1
WYMY 101.1

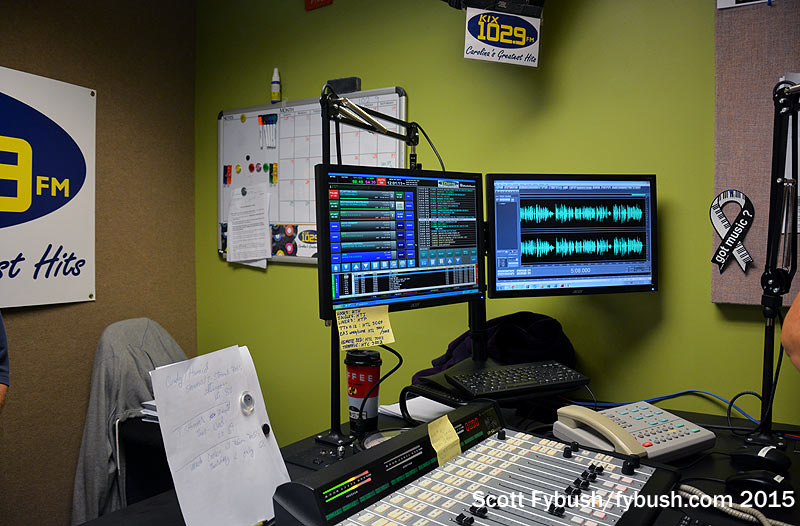

Several of Curtis’s smaller stations operate from smaller studios in the central core of this wing. “Pulse” is a rhythmic top-40 simulcast on WWPL (96.9 Goldsboro) and WPLW (102.5 Hillsborough). WKIX (102.9) is classic hits.

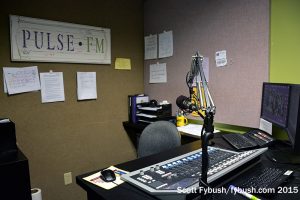

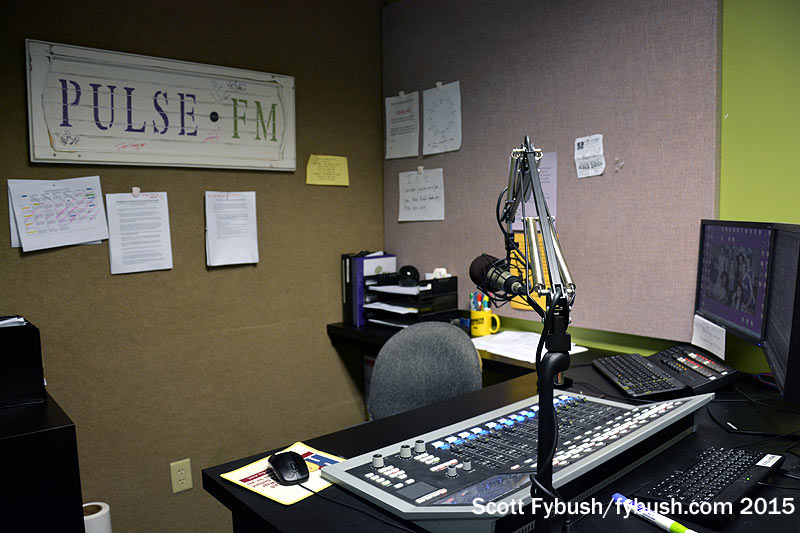

WPLW 96.9/102.5
WPLW 96.9/102.5

WKIX 102.9
WKIX 102.9

And up at the front of the hallway, WBBB (96.1) is largely automated, running variety hits as “Radio 96.1.”

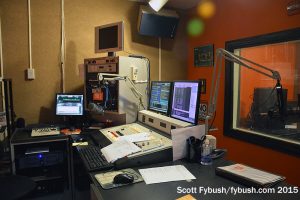

WBBB 96.1
WBBB 96.1

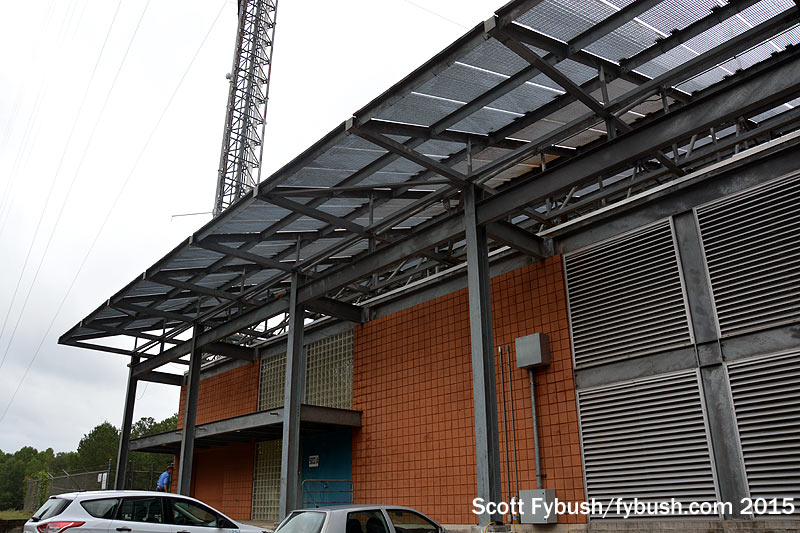

The WRDC building
The WRDC building

Out at the east end of the market, three 2000-foot towers line US 70 near Garner, North Carolina. The weather keeps us from seeing much of the tops of them, but we get a nice tour of Curtis’ piece of the westernmost of the towers. The current site at this spot was rebuilt after a 1989 storm took down both its predecessor and the nearby site of WRAL-TV/FM; after the storm, WRAL’s owner, Capitol Broadcasting, partnered with Durham Life, the owner of WPTF-TV/WQDR, to put up this beefy new tower.

WRDC/WQDR tower base
WRDC/WQDR tower base

WQDR 94.7
WQDR 94.7
WRDC 28
WRDC 28
WRDC/WPTF
WRDC/WPTF

Each partner here took half of the new building, and when Durham Life sold the TV and radio stations to separate owners, both owners continued to share the former WPTF-TV room.

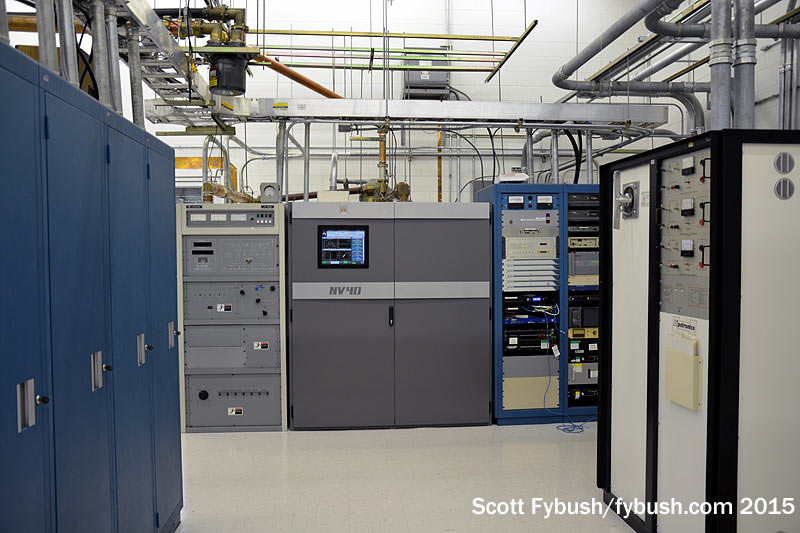

Curtis’ WQDR (94.7) has a shiny new Nautel transmitter and an older Continental for backup, feeding antennas way way up high on the tower; Sinclair’s WRDC (Channel 28/RF 27) has the Acrodyne transmitter typical of all Sinclair stations. Next door, WRAL-FM (101.5) is still there, along with Capitol sister station WCMC-FM (99.9 Creedmoor). But there’s no other TV on this tower anymore – Capitol and several other broadcasters built another 2000-footer nearby for the DTV transition, and now WRAL-TV is over there instead of over here. (We’ll show you that in a few months when we chronicle the trip we’re on right now, which included visits to WRAL’s side of this building…)

Thanks to Curtis Media’s Allen Sherrill for the tour!

CALENDARS ON CLEARANCE

If you don’t have your 2023 Tower Site Calendar yet, now is the perfect time to get it. Because we have lowered the price to just $14.

The calendar has great photos of broadcast sites near and far (everywhere from Navajo Nation on the cover to Boston to Toronto to Texas, and beyond), plus a lovely “centerfold” you can keep on your wall for 2024.

It’s still shipping regularly, and you can have yours in just a couple of days!

Order your copy and you’ll see what we mean.

If you have already ordered your calendar, make sure you check out the other items in the store, too!

And don’t miss a big batch of Raleigh-Durham IDs next Wednesday, over at our sister site, TopHour.com!
