Site of the Week 5/4/2012: Dayton, Ohio, summer 2010

There’s much more to Dayton, Ohio than just the annual Hamvention, which starts in just two weeks. This smallish city in southwest Ohio has lots of broadcast history, too – a history we began chronicling here in December 2010, when we presented a look at the now-former studios of Cox’s WHIO radio and television. That tour was just one part of a very busy day in July 2010 that found us visiting most of Dayton’s other TV stations and one radio cluster, too, and we’re delighted to show you those tours this week and next.

We start this installment on the west side of Dayton, where all of the market’s TV towers sit in a line up and down South Gettysburg Road and neighboring Soldiers Home-West Carrollton Road.

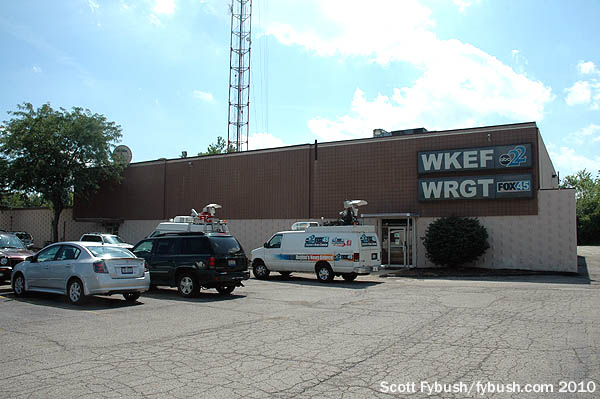

The old WKEF studios

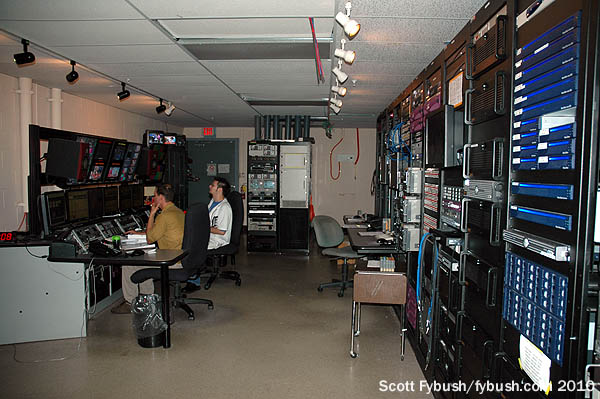

WKEF's master control

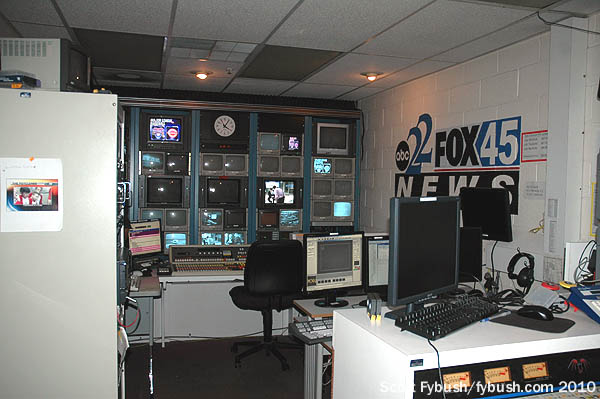

The WKEF/WRGT control room

Two of these towers have (or at least had) studios at their bases, and our tour begins at the oldest of those. Dayton’s channel 22 signed on in 1964 as independent WONE-TV but quickly became an ABC affiliate a WKEF. The callsign stood for Katharine E. Flynn, who was the secretary to William L. Putnam, the head of Springfield Television, which owned another channel 22, WWLP-TV in Springfield, Massachusetts. WWLP and WKEF shared the same “22″ logo for many years, remaining sister stations until new ownership finally split them up in the 1990s.

(Flynn, later Katharine Flynn Broman, eventually went on to marry Putnam, but that’s another story, isn’t it?)

WKEF bounced around from ABC to NBC in 1980, then back to ABC in 2004. By then it was part of a Sinclair-controlled duopoly along with Fox affiliate WRGT (Channel 45), and when we finally made it over for a tour in 2010, we found an interestingly split operation: the newsroom, studio and master control for both WKEF and WRGT were in the old WKEF building on Soldiers Field-West Carrollton Road near the south end of the tower farm, while the stations’ business and sales offices were in the old WRGT building at “45 Broadcast Plaza” off South Gettysburg Road.

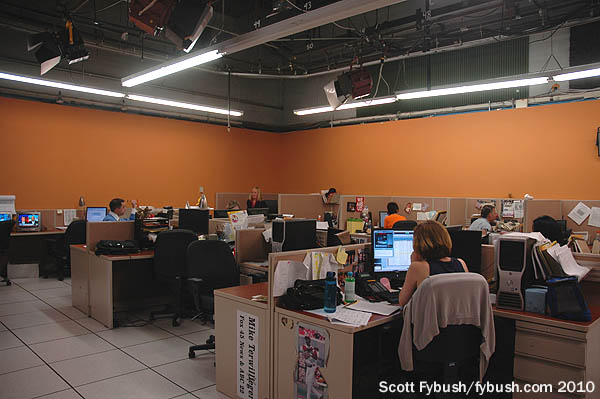

The WKEF/WRGT newsroom

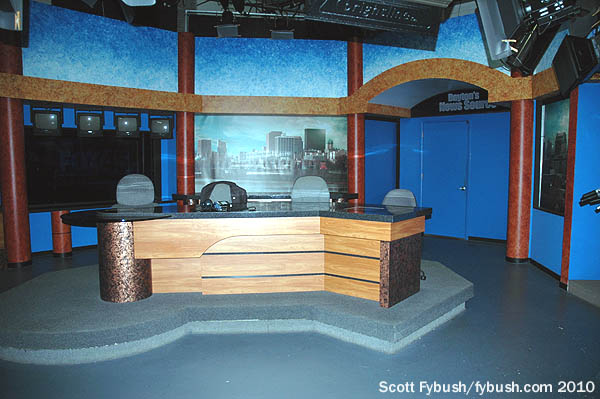

The WKEF/WRGT news set

The news set for both stations was tucked into a corner of the old WKEF studio, most of which had by then become the newsroom for both stations. The old WKEF analog transmitter was gone from the master control area, and the 1095-foot tower out back held only a defunct channel 22 analog antenna and a panel antenna for Main Line Broadcasting’s WROU (92.1 West Carrollton).

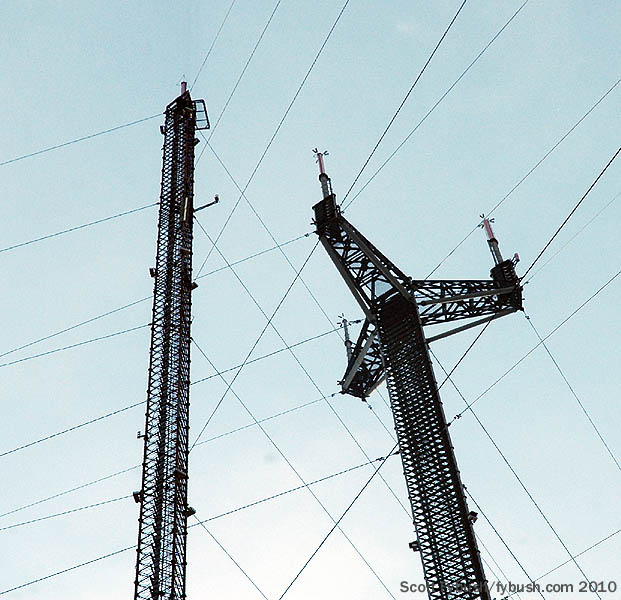

The WRGT towers, close up

...and as seen from WDTN

Where did the WKEF transmitter go? With the DTV conversion, it moved about a third of a mile northeast to the WRGT site, where a second tall tower (crowned by a candelabra) went up next to the original WRGT analog tower, both of them about 1150 feet tall. A new transmitter building next to the old WRGT office building housed (and still houses) both WKEF (RF 51) and WRGT (RF 30), as well as WBDT (Channel 26/RF 26), the CW affiliate licensed to Springfield, Ohio.

(There was also a translator here for another Sinclair station: My Network affiliate WSTR-TV 64 from Cincinnati was seen for many years on Dayton translator W66AQ; after the DTV transition, the translator moved from 66 to WKEF’s old channel 22 position as W22DE and for a time relayed the My Network programming from WRGT’s 45.2 subchannel. It went silent when Cincinnati’s WCPO relocated to RF 22 just a few months after our 2010 visit.)

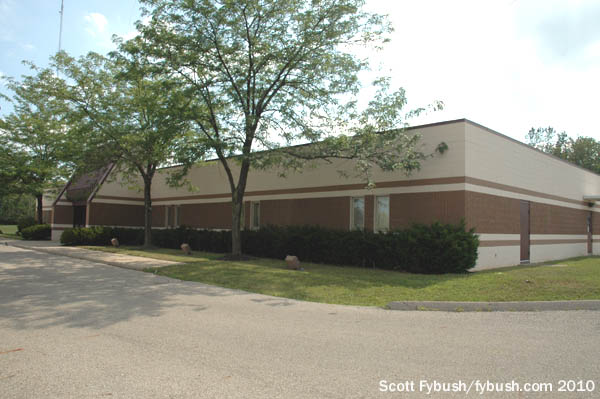

The former WRGT studio

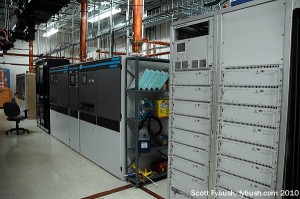

The WRGT/WKEF transmitters

WBDT, as it turns out, plays an interesting role in both the WKEF/WRGT story and in the story of the other station featured on this tour, WDTN (Channel 2/RF 50).

That’s because right around the time we were visiting in 2010, WDTN’s owner, LIN, was in the process of taking over WBDT’s operations.

That meant WBDT’s rather spacious studios south of Dayton in the suburb of Miamisburg were being vacated – and as we write this in mid-2012, Sinclair is in the process of moving WKEF and WRGT from their split facilities over here on the west side to the former WBDT space in Miamisburg, leaving only the digital transmitter site behind. (Why is WBDT’s old space so big? It’s where the syndicated “Daily Buzz” morning show used to be produced before moving to Florida in 2004.)

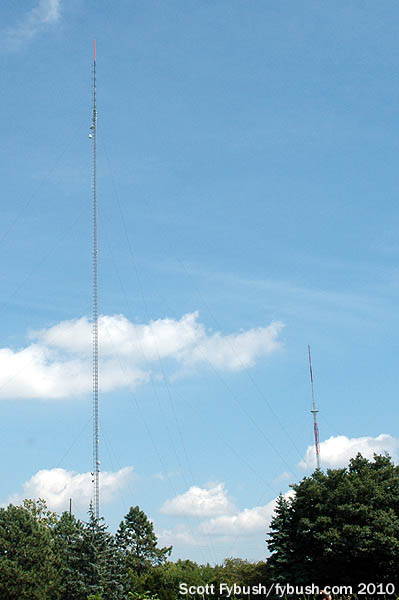

WDTN's towers

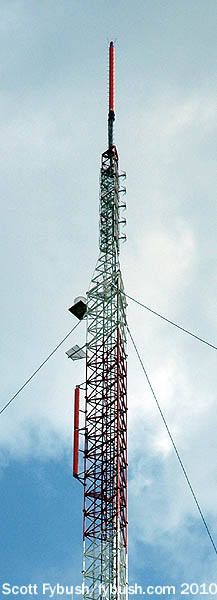

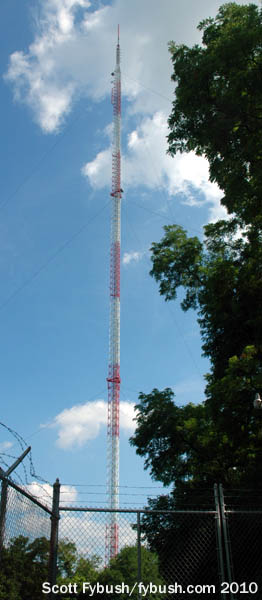

The WHIO-TV tower

WHIO-TV/WHKO

We’ll pause for a moment here to talk about the rest of the tower lineup in the farm.

There are two more sites down at the south end of the farm near the old WKEF site and the WKEF/WRGT digital facility.

WPTD's tower

Whether you’re going south on Soldiers Home-West Carrollton Road from WKEF or on South Gettysburg Avenue from WRGT, you end up at Frytown Road – and it’s right there that you find the site of WDTN (Channel 2/RF 50).

There are two towers here: a 1010-footer that’s home to WDTN’s digital antenna (and the last analog channel 2 facility) and a 459-footer that was the original tower going all the way back to 1949, when the station started out on channel 5 as WLWD, the Dayton outlet of Crosley Broadcasting.

(They preferred to write the calls out as “WLW-D,” emphasizing the connection to Cincinnati mothership WLW and its TV sibling, “WLW-T,” which moved from channel 4 to 5 as part of the 1953 Midwest allocations shuffle that moved WLWD to channel 2.)

Going back up South Gettysburg Avenue, before we get to WRGT on the west side of the road, we pass the 1132-foot tower of Dayton’s public TV station, WPTD (Channel 16/RF 16), also home to public radio station WDPR (88.1). When WPTD came on the air in 1972 as WOET, it filled a vacant channel that had briefly operated commercially in the late 1960s as WKTR-TV, licensed to the Dayton suburb of Kettering.

And if you continue north on Gettysburg for another mile or so to Germantown Street (Ohio 4) and turn right, you come to the 1953-vintage 1098′ tower that’s home to WHIO-TV (Channel 7/RF 41) and sister FM station WHKO (99.1).

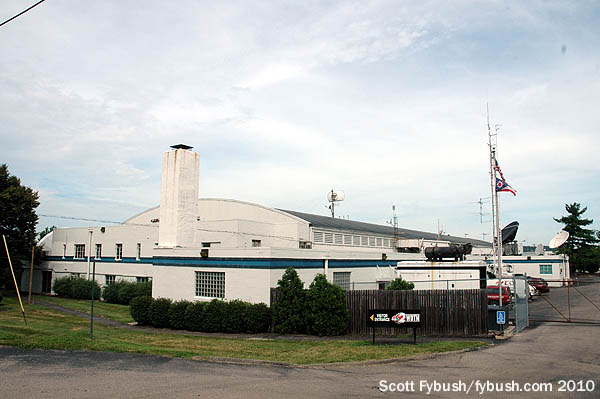

WDTN's studios

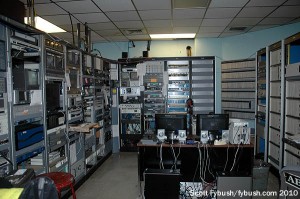

WDTN's tech center

From the tall towers, we move just a mile or so east and downhill, across the Miami River into the close-in Dayton suburb of Moraine. That’s where the WDTN studios have been a longtime fixture on South Dixie Drive, going all the way back to the early days as “WLW-D.”

The building apparently started out as a roller rink, and it still looks a bit like one from the outside. On the inside, it’s a classic: upstairs, there’s a tech center where master control used to be located (as a LIN-owned station, WDTN’s master control is now at the hubbed facility at Indianapolis’ WISH-TV); above the drop ceiling, we’re told you can still see the original arched roof of the roller rink.

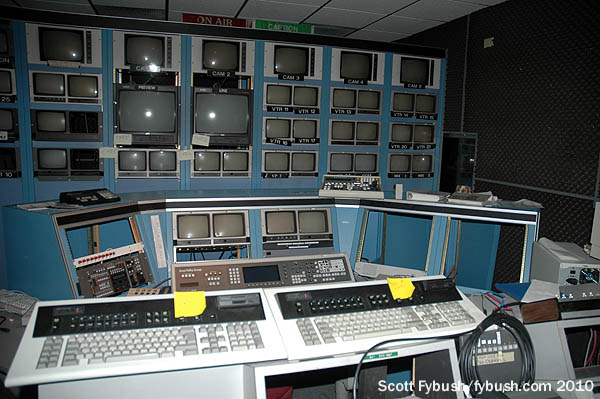

WDTN's old control room

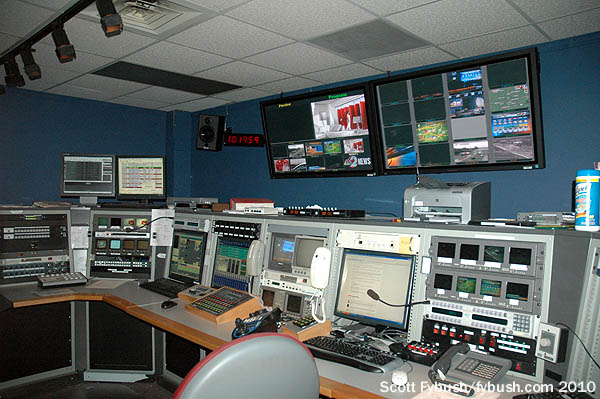

WDTN's new control room

The old news control room upstairs was being dismantled when we visited, replaced by a new digital control room that had recently gone into use downstairs, across the hall from the fairly spacious newsroom. The longtime pecking order in Dayton TV news had channel 2 nestled almost permanently in second place, behind market leader WHIO-TV and well ahead of perennial last-place WKEF/WRGT, and from what we hear, that didn’t change much when WDTN and WKEF swapped affiliations in 2004, returning channel 2 to NBC after a quarter-century with ABC.

(Along the way, WDTN ended up reconnecting briefly with its old Cincinnati sister – it was owned by Hearst-Argyle from 1981 until 1998, and in 1997 Hearst also bought Cincinnati’s WLWT. Because of the very significant signal overlap between WDTN and WLWT, Hearst had to sell WDTN to LIN in 1998. That sale, ironically, eventually made WDTN a sister station to WWLP in Massachusetts, the second time WWLP had a Dayton sister station. We mention this in large part because one of our companions for these Dayton tours was NECRAT.us editor Mike Fitzpatrick, a proud alumnus of WWLP; you can see his Dayton pictures here.)

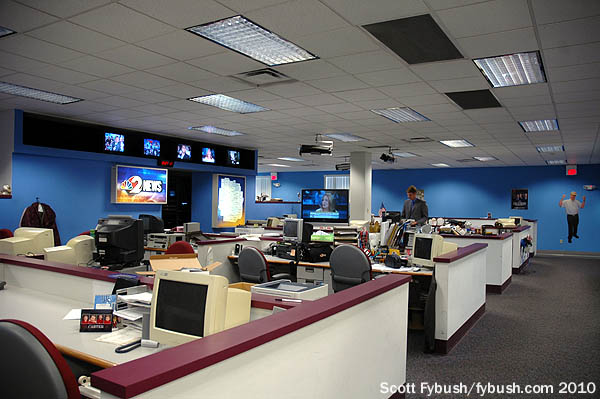

WDTN's newsroom

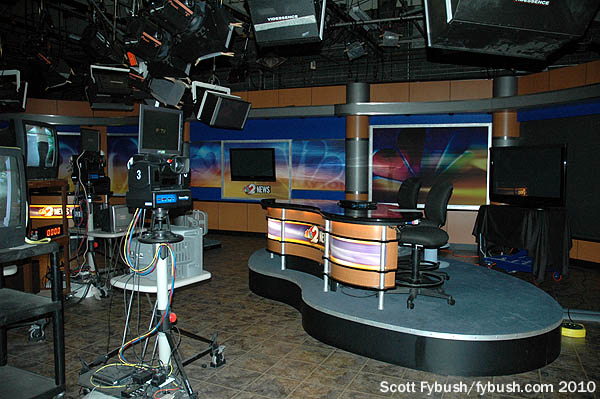

WDTN's studio

The news studio is also downstairs, just down the hall from the newsroom and control room; in addition to the WDTN newscasts at all the usual times, WDTN was also producing a 10 PM newscast for WBDT as far back as 1997, long before the CW affiliate came under LIN’s management and moved into this building.

(The studio is apparently being renovated now for HD; when we visited in 2010, none of Dayton’s stations were producing local news in HD, but Cox’s move to a new HD facility at WHIO-TV in 2011 prodded everyone else to follow along. We visited that new WHIO-TV facility in the summer of 2011, and we’ll show you that as well in the weeks to come.)

One more thing about WDTN before we close out this week’s installment: back in the WLWD days, this station was home to a promising young talk host named Phil Donahue, who started his show right here in Dayton in 1967 before going national in 1970.

Thanks to Sinclair’s Richard King and WDTN’s Jim Atkinson and Donald Jones for the tours, and to Mike Fitzpatrick for driving!

Check out our spring clearance specials on the world-famous Tower Site Calendar 2012, available from the all new Fybush.com store!

Want access to more than a dozen years’ worth of Tower Site of the Week? All our archives, fully searchable, are available to Fybush.com subscribers – and you get full access to NorthEast Radio Watch, too! Subscriptions start at just $15. Sign up here!

And don’t miss more Dayton legal IDs next Wednesday, over at our sister site, TopHour.com!

Next week: Dayton, 2010 – WING, WGTZ and more
