Site of the Week 9/3/2021: Warren, PA

Scott Fybush by Scott Fybush
September 3, 2021
in Free Content, Pennsylvania, Tower Site of the Week
1

Text and photos by SCOTT FYBUSH

Some radio stations get to their 65th anniversary trailing long histories of multiple studio and transmitter sites. Others find a home and stay put there for decades. In the northern tier of Pennsylvania, 25 minutes south of the New York border, the cluster of local stations in the city of Warren is a good example of the former, as it prepares to mark 65 years without ever having relocated.

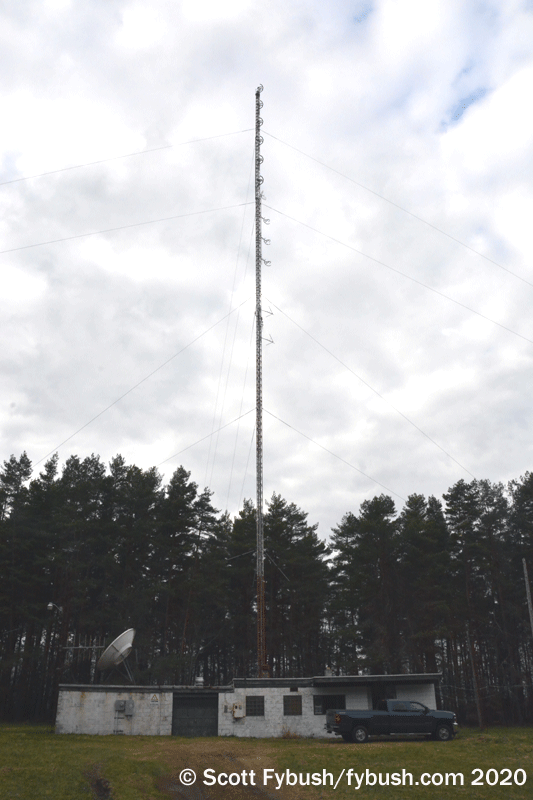

WRRN/WNAE/WICU
WRRN/WNAE/WICU
WRRN/WNAE/WICU
WRRN/WNAE/WICU

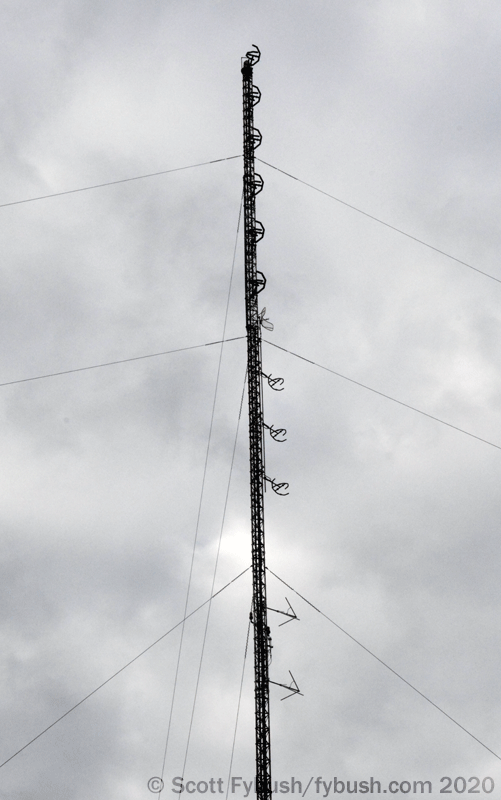

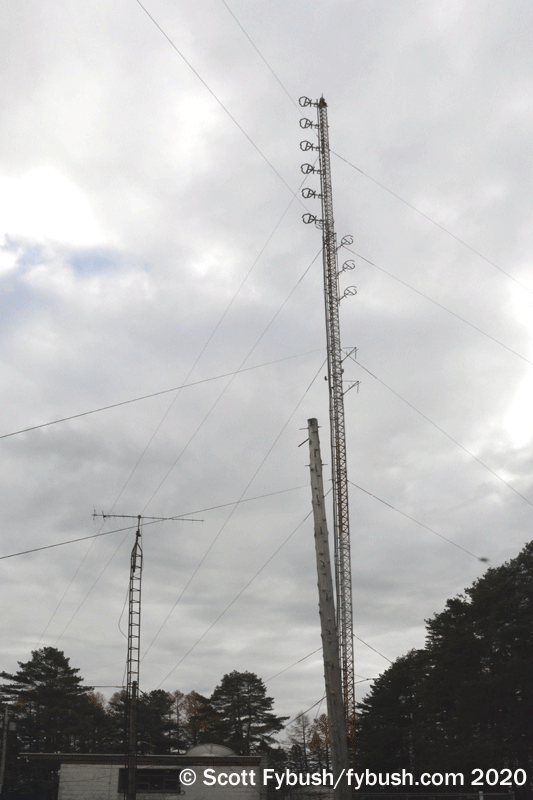

WRRN/WNAE/WICU tower
WRRN/WNAE/WICU tower

When we headed up the steep hill south of Warren in the fall of 2020, we expected to just snap a quick picture of the tower and antennas up at the top of Mohawk Avenue, but there was a truck in the driveway, and a tour soon followed.

These days, the low-slung building up here houses four signals owned by Lilly Broadcasting out of Erie, an hour to the northwest: WICU (1310) and its translator on 96.7 relay Lilly’s top-40 “Happi” (WICU-FM 92.7) from Erie, WRRN (92.3) is the big class B FM with classic hits as “92 Gold,” and WNAE (104.3 Clarendon) is a class A FM signal doing country as “Kinzua Country,” named for the nearby Kinzua Dam that’s a major area landmark. (Say it “Kin-zoo” if you don’t want the locals to point and stare at you.)

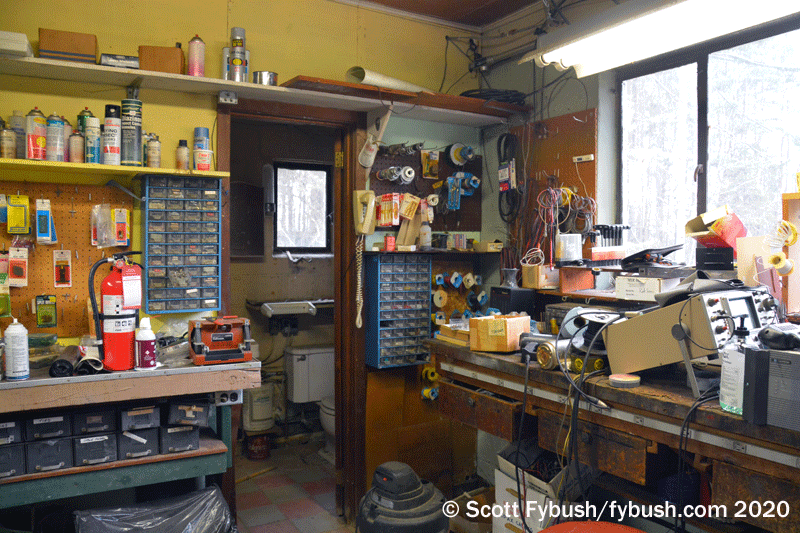

Workbench at the WRRN site
Workbench at the WRRN site

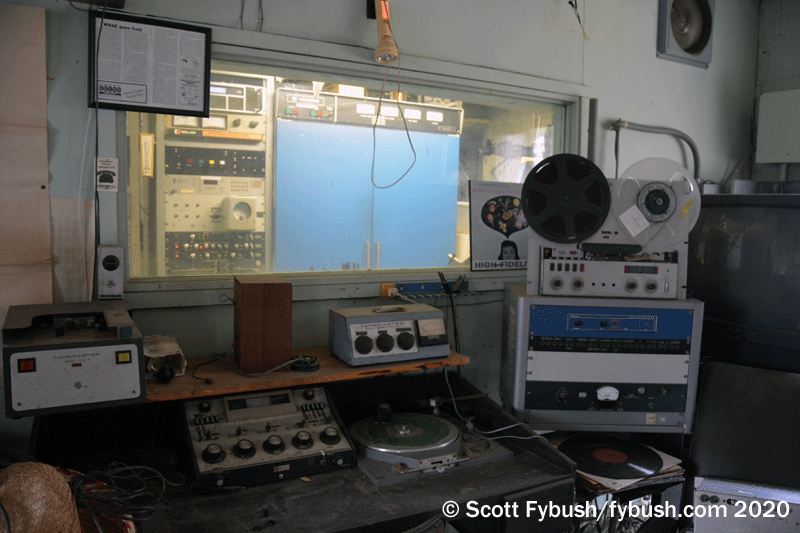

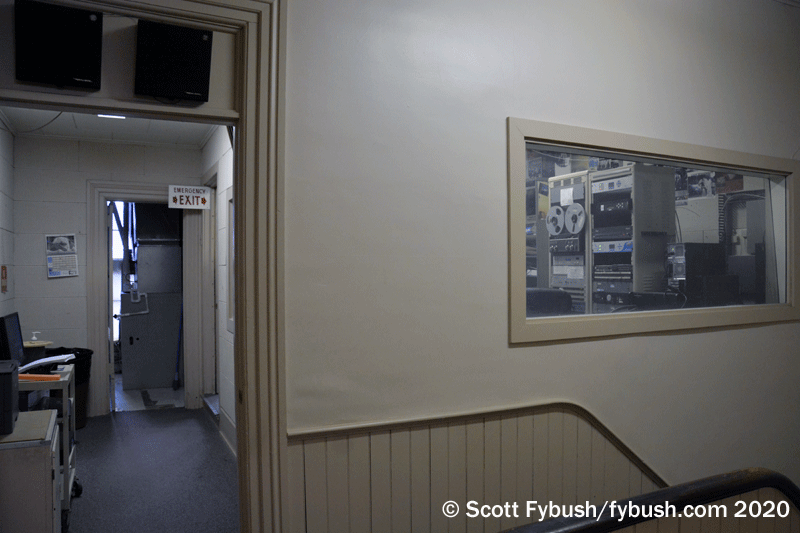

Studio at the WRRN transmitter
Studio at the WRRN transmitter

Go back into the history cards and you’ll find that this very site, then known as Buchers Mill Road, was the very one listed on the first CP for 1310 back in the summer of 1946. The Northern Allegany Broadcasting company put the AM station on the air in March 1947 as a 1000-watt daytimer under the WNAE calls, and it remained WNAE until just a few years ago when Lilly changed the calls to WICU (matching its WICU-TV over in Erie.)

WNAE-FM hit the air in October 1948 from the studios downtown at 92.1; by 1953, it had moved up here to the hill on 92.3, gradually making its way to full class B power. The class A signal on 104.3 came on in 1997 as WKNB, then took the heritage WNAE callsign in early 2020.

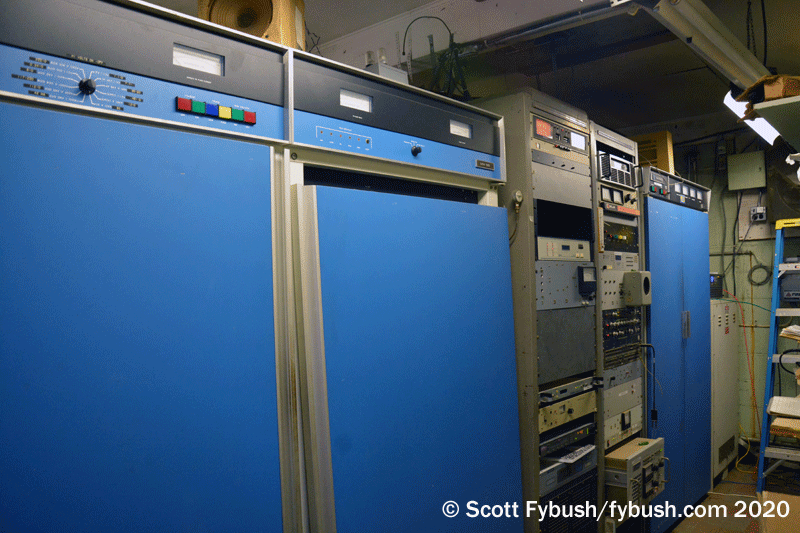

WICU AM
WICU AM

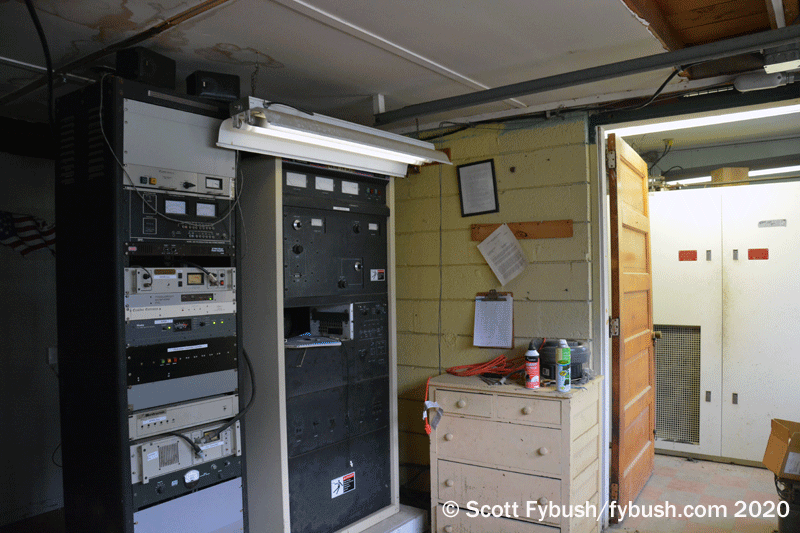

WNAE transmitter
WNAE transmitter

Today, various generations of transmitters for all three stations now fill the building up on Mohawk Avenue. There’s a big engineering shop in the front from back in the days when on-site engineers were constantly fixing equipment, and a studio space from the days when at least some programming might have originated up here. The studio looks into the main transmitter room where the AM rig and the translator still sit; the current WRRN transmitter is around the corner, while 104.3 is tucked in back.

Old cable headend
Old cable headend

The Pennsylvania mountains were the birthplace of cable TV in the 1940s and 1950s, and there’s a long-abandoned cable TV headend tucked in the woods behind the transmitter building, with remnants of tuners and amplifiers still on one of the decaying walls. (Oddly enough for a market where an Erie TV station owns the radio stations, the Warren area is actually part of the Buffalo TV market, a relic of the days when big antennas up here pulled in signals from 70 miles north, the nearest market with a full complement of signals.)

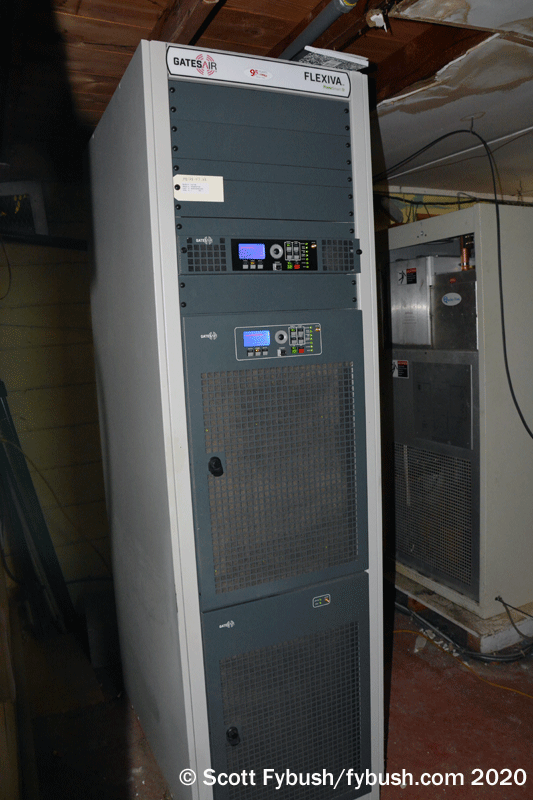

WRRN transmitter
WRRN transmitter

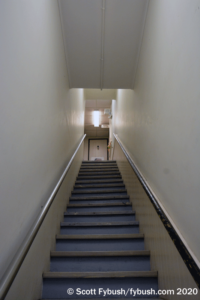

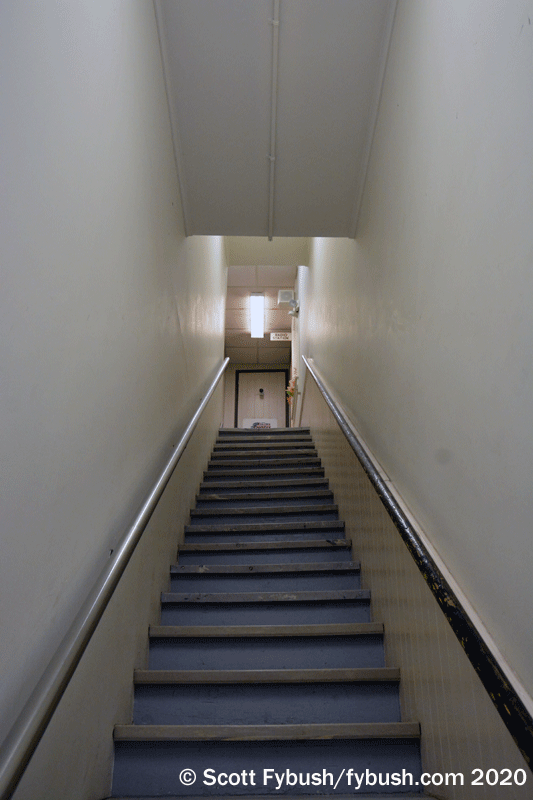

Up the stairs to WRRN...
Up the stairs to WRRN…

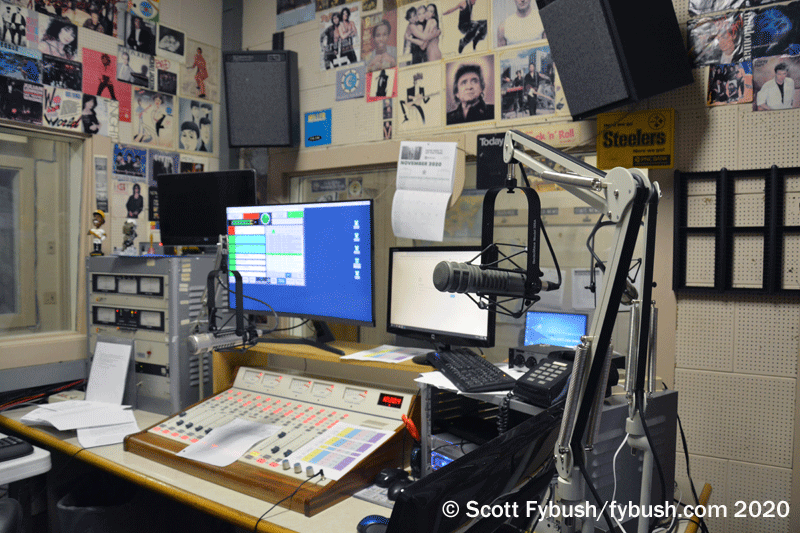

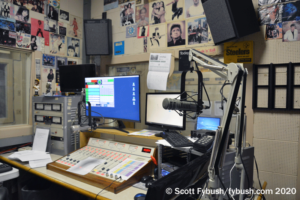

WRRN studio
WRRN studio

After an impromptu transmitter site tour, why not an impromptu studio tour, too? Down the hill we go into downtown Warren, tucked into a bend of the Allegheny River.

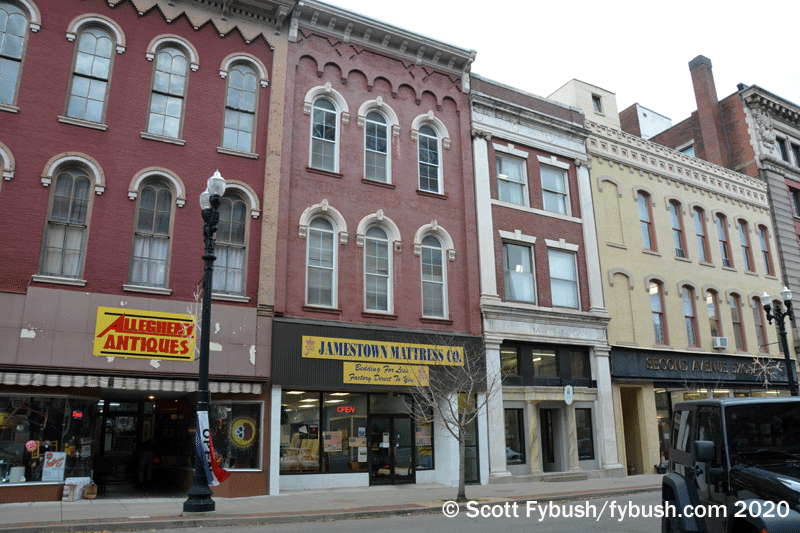

WRRN studios
WRRN studios

When WNAE went on the air in 1947, it was from offices up a steep flight of stairs above the First National Bank in its building at 310 Second Avenue, with studios another steep flight of stairs up from there. All these years later, the bank is long gone, leaving behind a once-impressive columned entrance, but the building and studios remain, and what a treasure they are!

WRRN studios
WRRN studios
WRRN studio
WRRN studio

The offices on the second floor have expanded over the years into the building next door, up above a Jamestown Mattress showroom. (The inconspicuous doorway is tucked away next to the mattress storefront.)

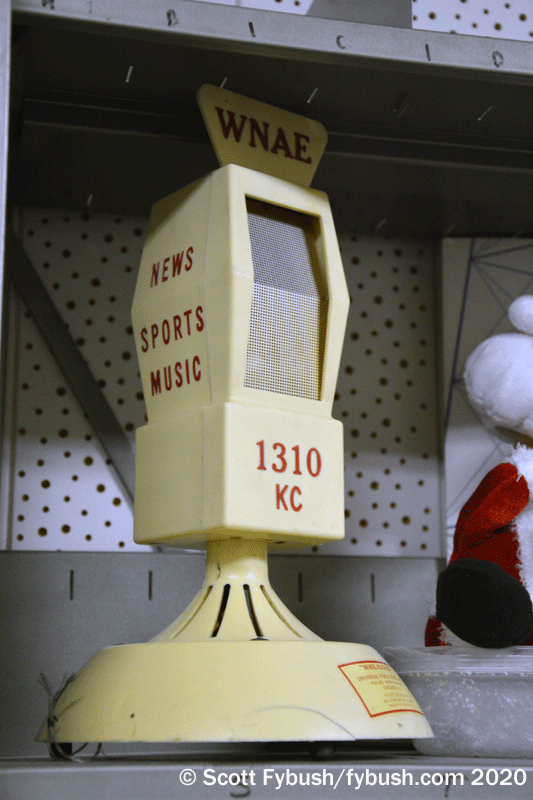

Old promo radio
Old promo radio

The ceilings here are high, which means it’s not just a steep stairway but a long one leading up to the studios on the third floor. Stop and catch your breath, and then let’s have a look around.

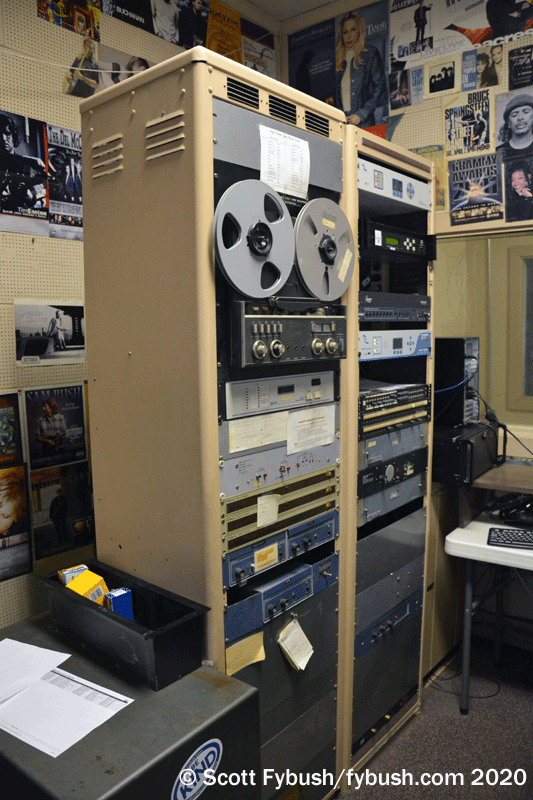

There are two clusters of studios here: in back is the studio used for WRRN and another that was the AM control room, with a rack of equipment for STLs and such (was this once where the early FM studio and transmitter once sat?), while in front is another big room that serves as the 104.3 studio, with an even bigger room facing Second Avenue that’s used now for production, all filled with decades of memorabilia and signage and other fun old stuff.

Once upon a time, we suspect, this production room was where big live shows once happened – was there live music here back in the day, with big mics hung from those massive booms?

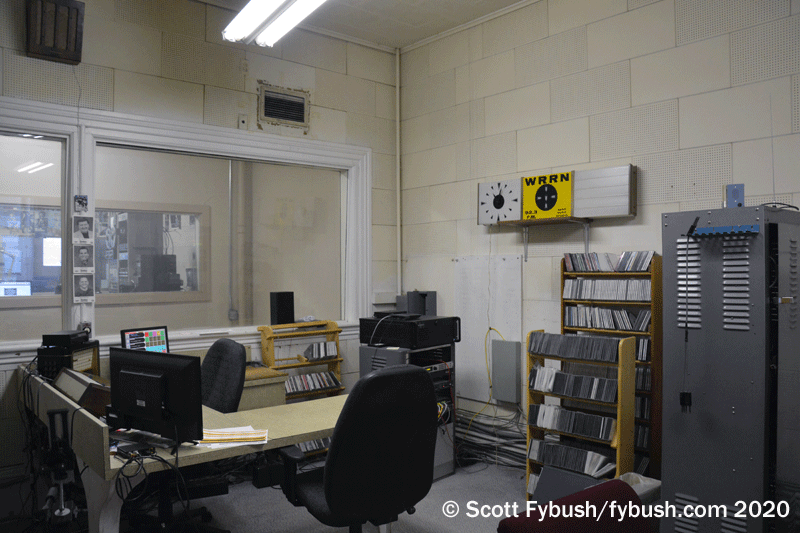

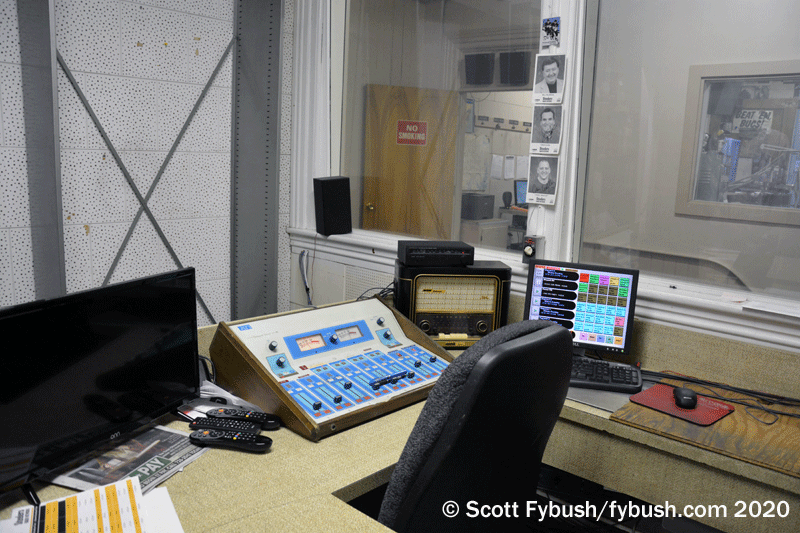

WNAE studio
WNAE studio
WNAE studio
WNAE studio

There’s not as much that’s live here now, of course; 1310 and 96.7 are programmed entirely from Erie, and 104.3 is mostly automated, but there’s still local news and some local jocks on WRRN, providing an important radio voice to this area that’s otherwise rather deprived of local media.

WNAE studio
WNAE studio

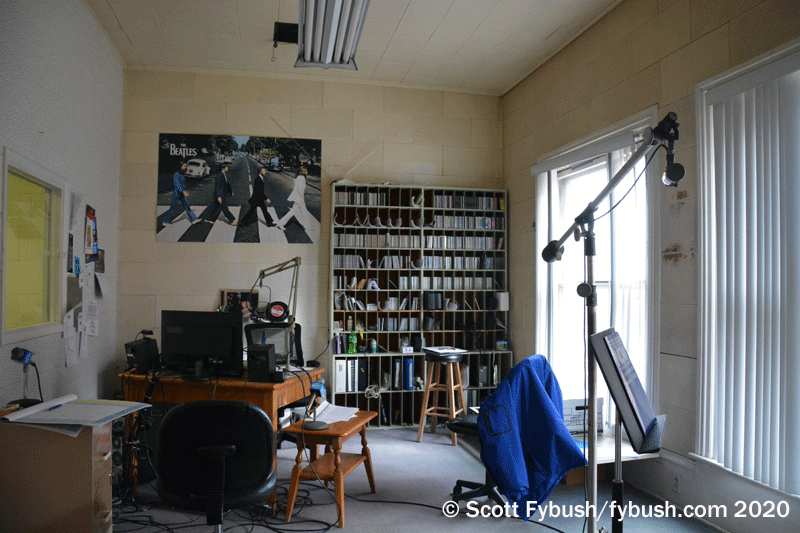

WRRN production room
WRRN production room

There’s one more really impressive thing to see up here on the third floor before we make the trip back down the long stairwell and head out of Warren to see some more cool stuff on the US 6 corridor across northwestern Pennsylvania: as WNAE/WRRN expanded into the building next door, it ended up with a big storage room running the length of the other building.

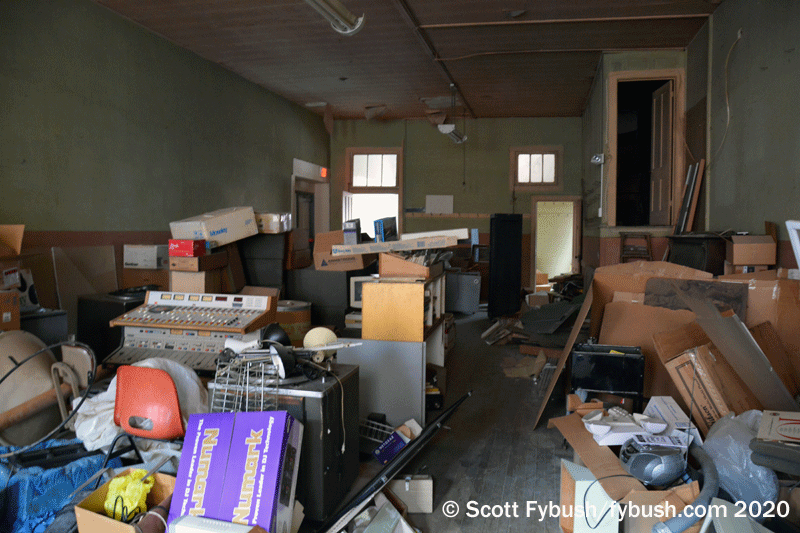

Storage room
Storage room

When a station stays put for as long as these stations have been here, rooms like this are treasures – and indeed, there’s all sorts of old stuff in here, from consoles to cart machines to turntables to more exotic gear, and maybe someday we can come back and poke around for a while longer.

Thanks to Mike Kobylka for the tours!

LAST CHANCE!

The Tower Site Calendar is nearly sold out.

We have only a few copies left, and then it’s gone.

If you haven’t ordered yours, now is the time. Click here.

And don’t miss a big batch of northwest Pennsylvania IDs next Wednesday, over at our sister site, TopHour.com!

Next week: More northwest Pennsylvania sites
